DisplayPort KVM USB2 AUDIO Uniclass 2CPU 1KVM to wired
DisplayPort KVM USB2 AUDIO Uniclass 2CPU 1KVM to wired
REF: UM065
Specifications

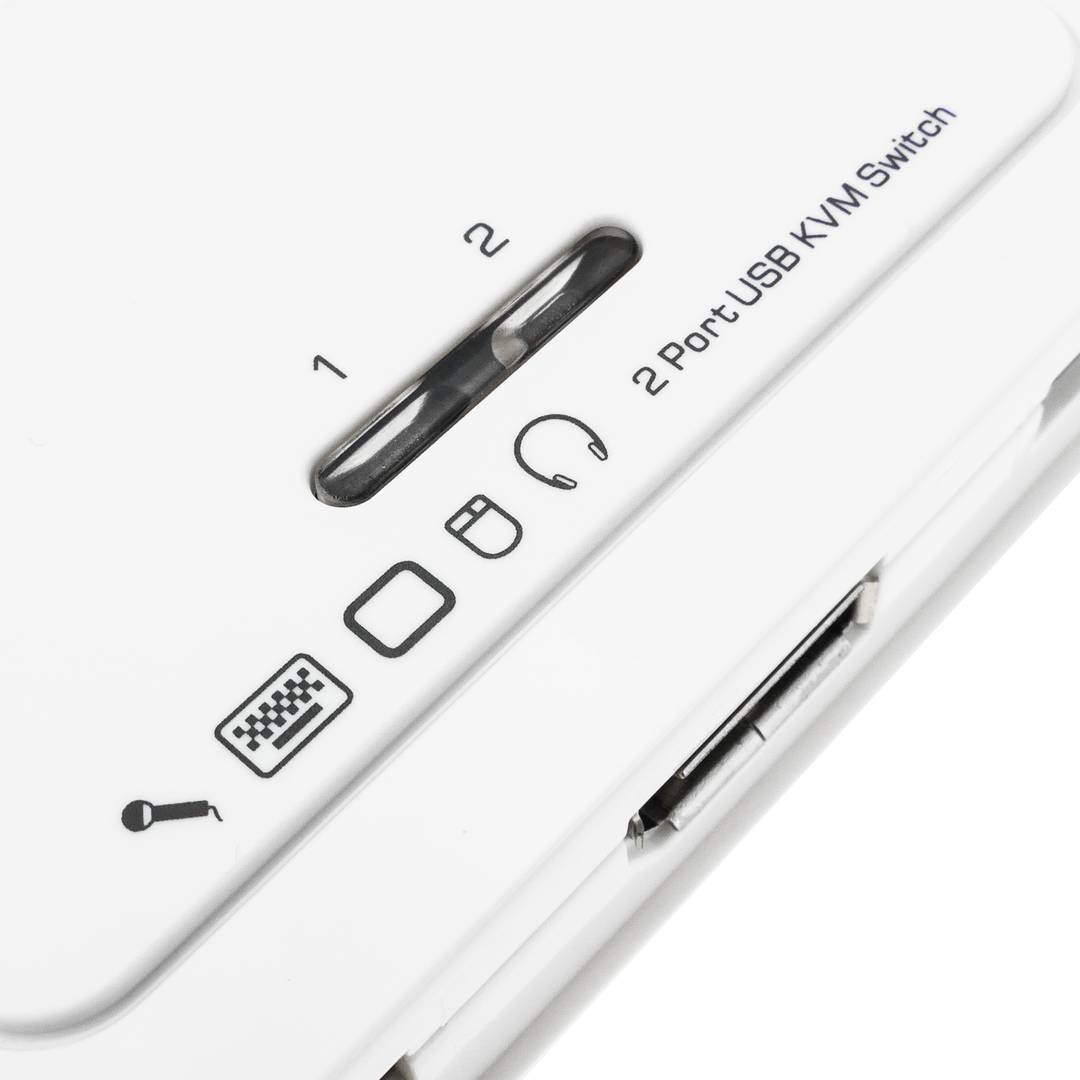

- KVM switch (keyboard, mouse, analog audio and digital video DisplayPort) with 2 ports of compact design.
- Size 87 x 59 x 25 mm.
- The commutation is carried out by means of a combination of special keys.

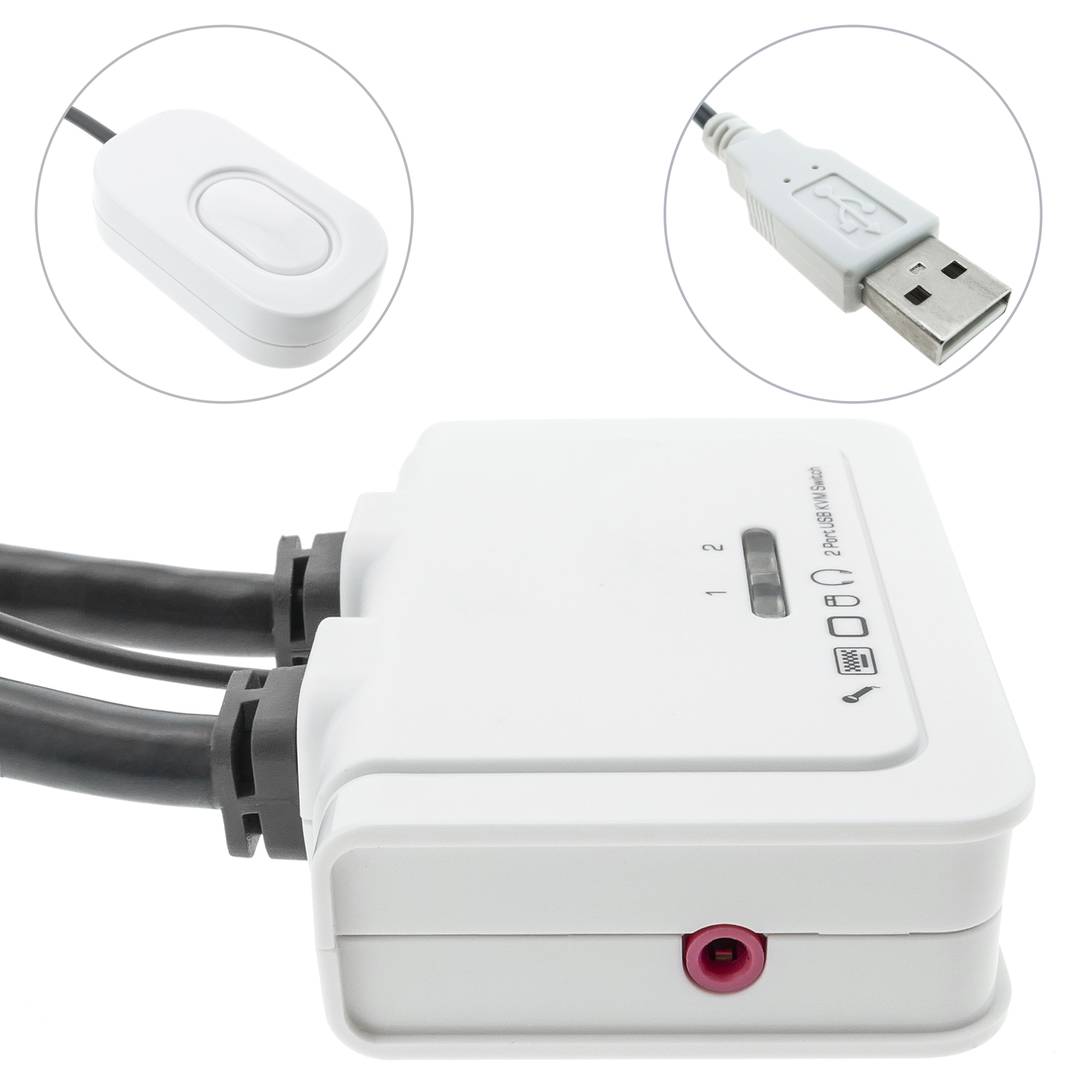

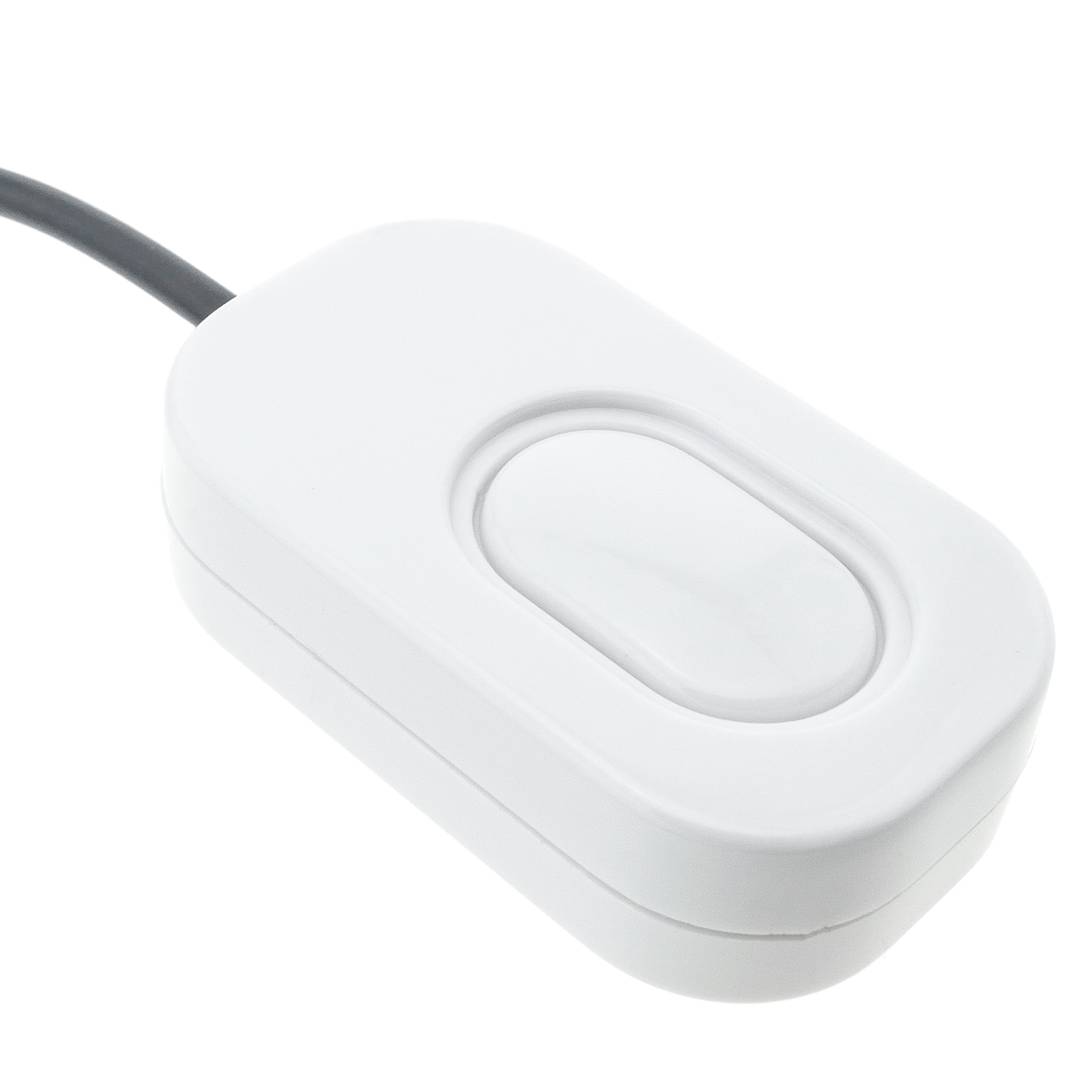

- It also has a push button with a 1.5m cable for selection of the active computer.
- For the connection of the computers it has 2 sets of DisplayPort connectors, 3.5mm minjack and USB.
Watch video
PVP
€94.69
Price including VAT:
€94.69
PVD
€82.39
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- KVM switch (keyboard, mouse, analog audio and digital video DisplayPort) with 2 ports of compact design.
- Size 87 x 59 x 25 mm.
- The commutation is carried out by means of a combination of special keys.
- It also has a push button with a 1.5m cable for selection of the active computer.
- For the connection of the computers it has 2 sets of DisplayPort connectors, 3.5mm minjack and USB.
More info

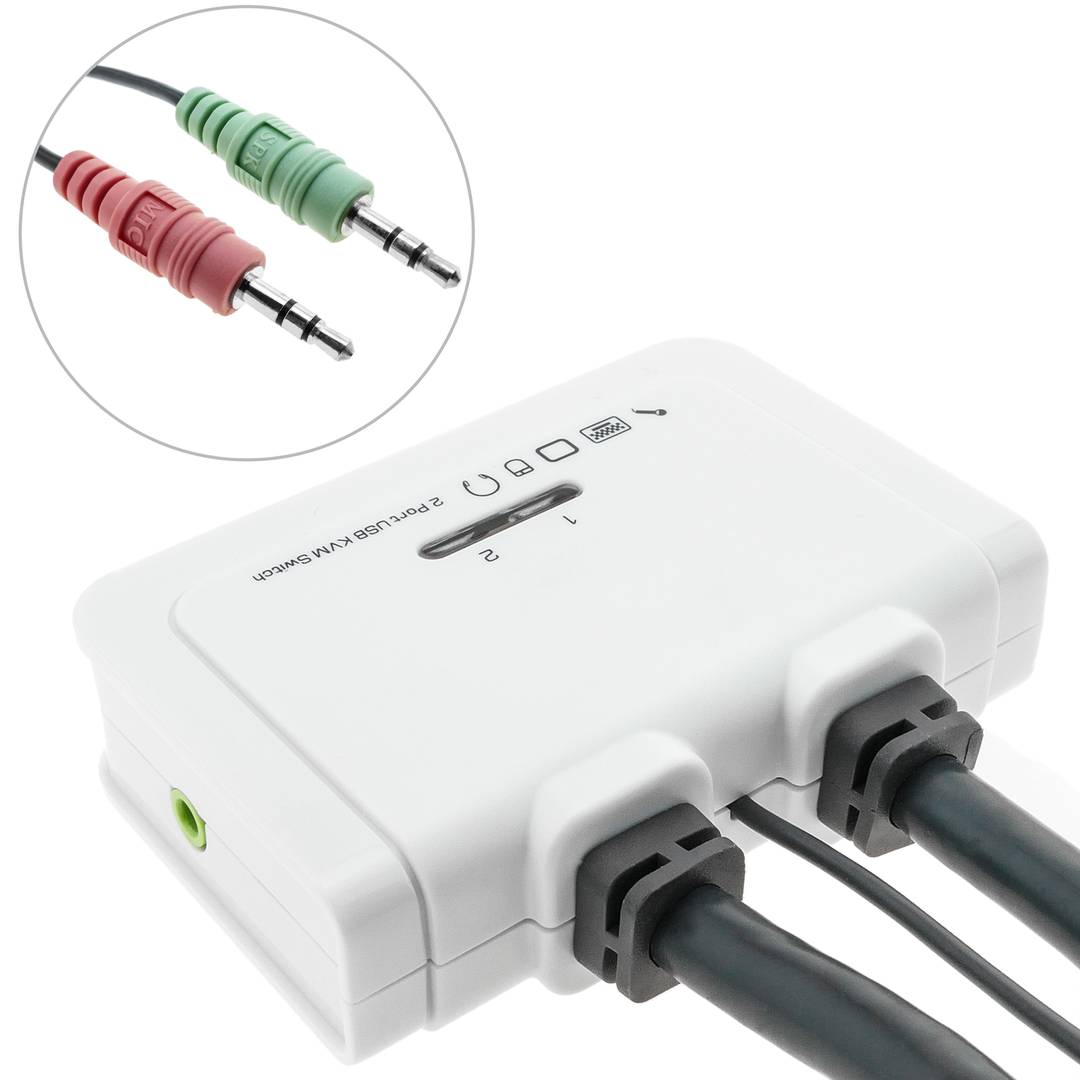

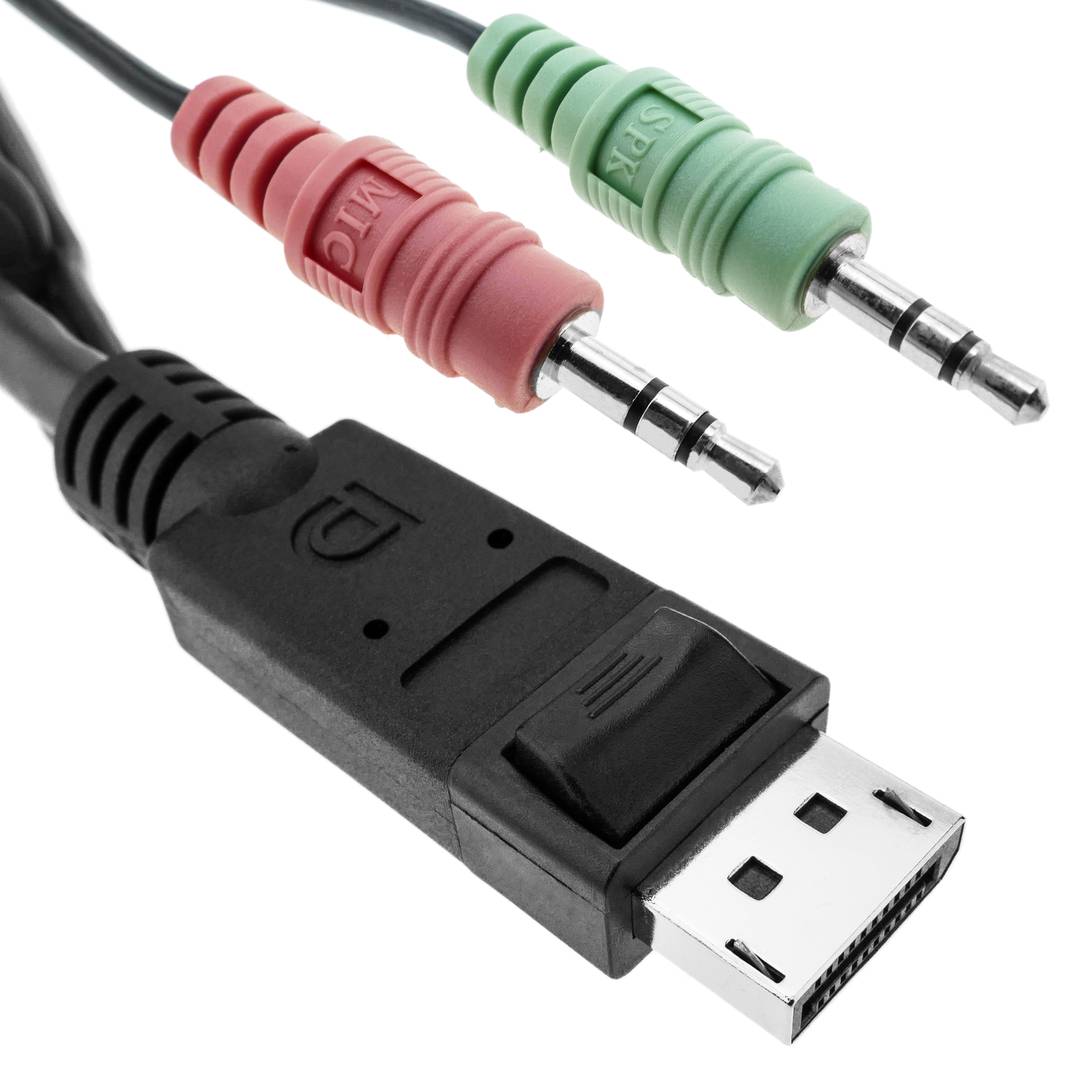

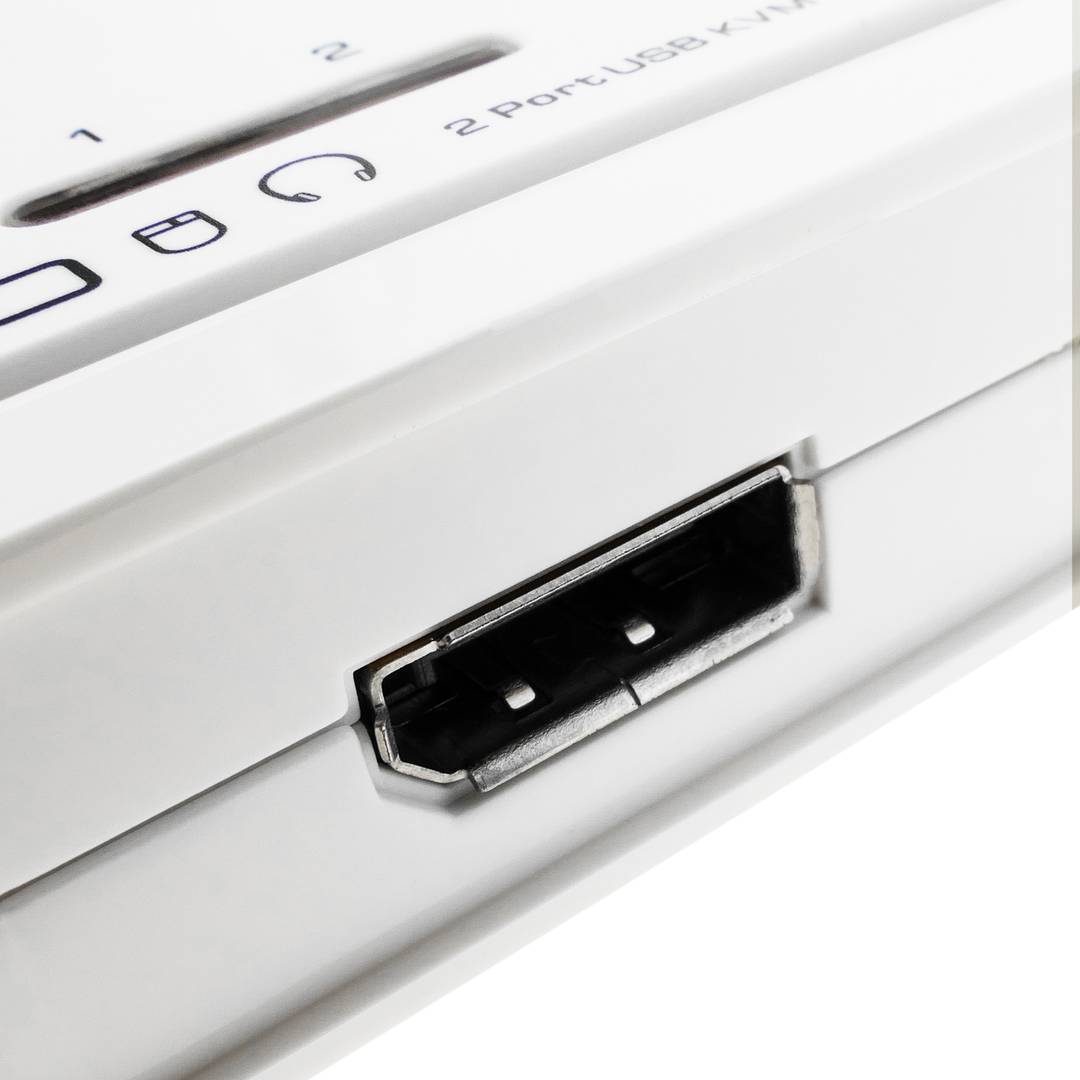

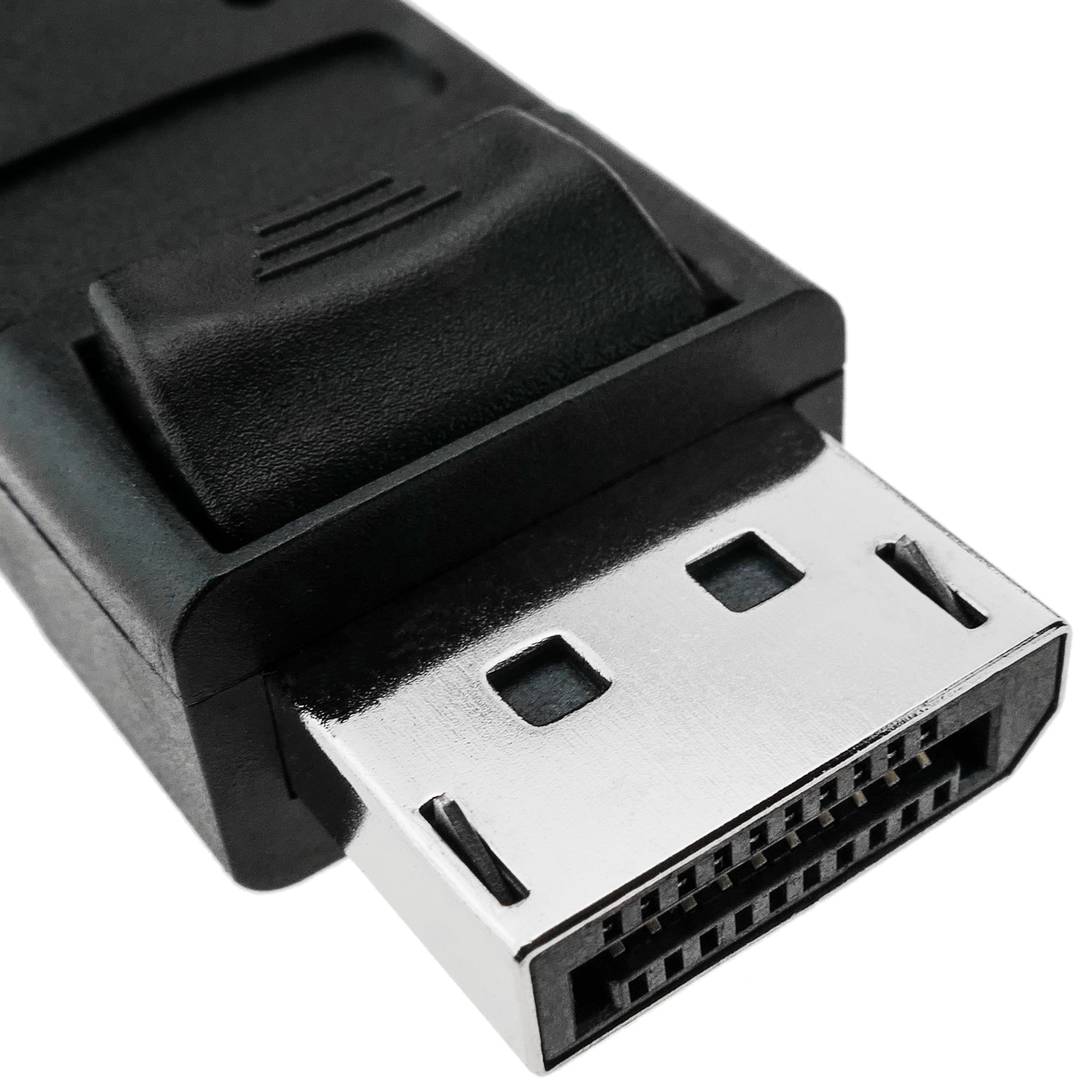

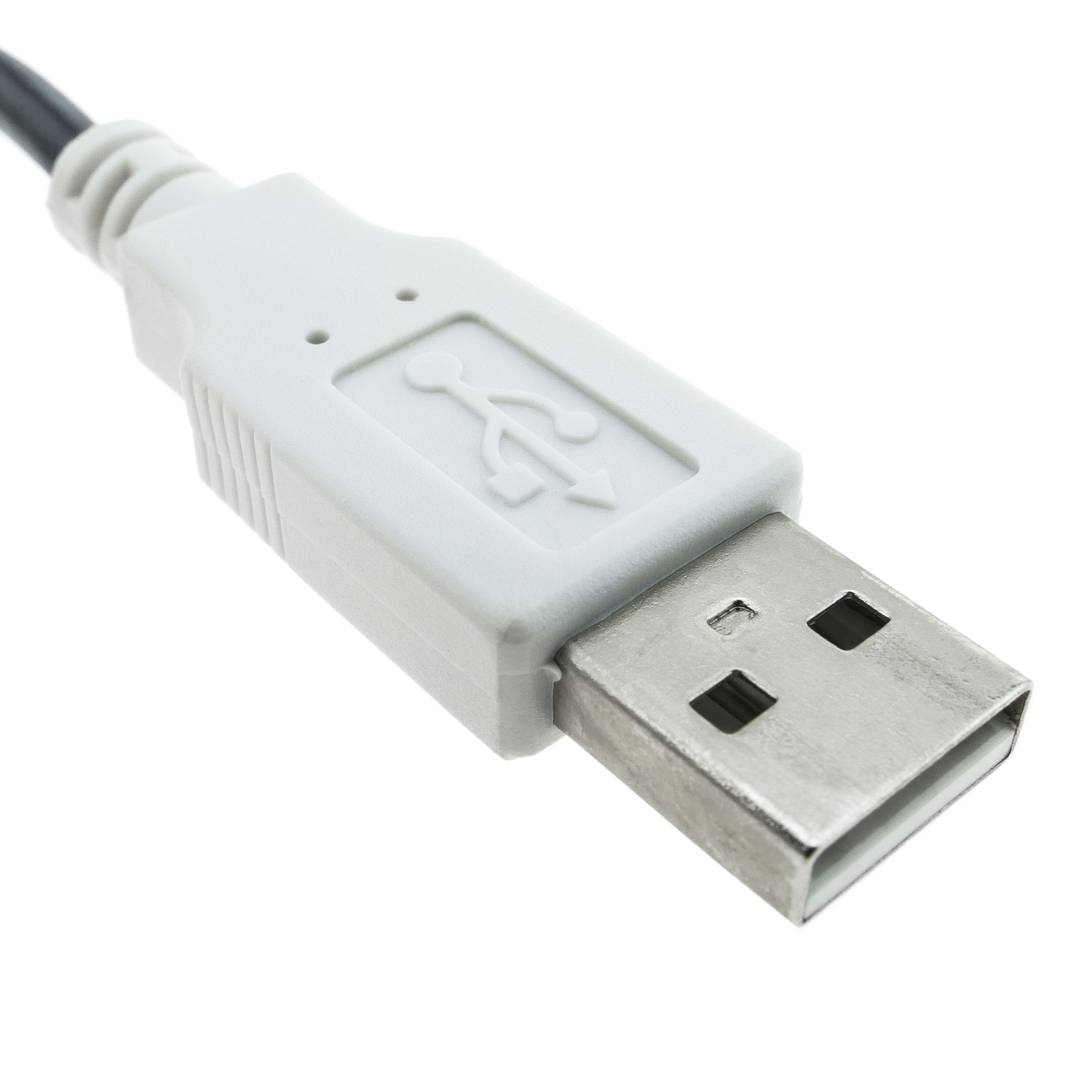

KVM switch (keyboard, mouse, analog audio and digital video DisplayPort) with 2 ports of compact design. Size 87 x 59 x 25 mm. The commutation is carried out by means of a combination of special keys. It also has a push button with a 1.5m cable for selection of the active computer. For the connection of the computers it has 2 sets of DisplayPort connectors, 3.5mm minjack and USB. The switch integrates 90cm cablesFinished length in the following connectors: 1 x DisplayPort male (digital video), 2 x minijack 3.5mm male (analog audio) and 1 x USB type A male (USB connection for keyboard and mouse). For the connection of the control console, the following connectors are available: 1 x DisplayPort female (digital video), 2 x minijack 3.5mm male (analog audio) and 2 x USB type A female (USB connection for keyboard and mouse). Maximum resolutionsported 2560 x 1600 (4 lines). It is powered through the USB port of any connected and active computer. Multiplatform (PC, Mac, iMac, etc.).
- Gross Weight: 460 g
- Product size (width x depth x height): 8.7 x 5.9 x 2.5 cm
- Number of packages: 1
- Packages size: 21.0 x 16.2 x 5.2 cm
- Master-pack: 1
Technical terms
- Jack connector
- Reversible USB Type-C
- KVM
- USB 3.0
- Mini USB
- MicroUSB
- USB
- DisplayPort
Jack connector
We can find 3 types of jack connector, monaural TS connector (tip-sleeve), TRS (tip-ring-sleeve) and TRRS stereo plug (tip-ring-ring-sleeve) which is used in most mobile devices, tablets, MP3 etc ...
We can difference these 3 types of connectors according to their diameter:
1. 6.35 mm jack connector or TS.
2. 3.5mm minijack connector or TRS, is the most common, usually used in headphone's output of portable devices.
3. 2.5mm jack connector or TRRS.
It consists of a maximum of three connecting parts being called the largest mass or negative polarity and two smaller size located more towards the end of the connector,
The called positive that correspond to each channel, such three-part plug can transmit signals in two separate channels, also known as stereo signals. There's a mono version, consisting of only two parts, a negative and a positive.
A. Protector
B. Stem
C. Ring
D. Tip
E. Kindred
F. Ring (Signal Right)
G. Tip (Signal Left)
We can difference these 3 types of connectors according to their diameter:
1. 6.35 mm jack connector or TS.
2. 3.5mm minijack connector or TRS, is the most common, usually used in headphone's output of portable devices.
3. 2.5mm jack connector or TRRS.
It consists of a maximum of three connecting parts being called the largest mass or negative polarity and two smaller size located more towards the end of the connector,
The called positive that correspond to each channel, such three-part plug can transmit signals in two separate channels, also known as stereo signals. There's a mono version, consisting of only two parts, a negative and a positive.
A. Protector
B. Stem
C. Ring
D. Tip
E. Kindred
F. Ring (Signal Right)
G. Tip (Signal Left)
