UPCI card Series 16C550 FLEX-ATX Titan om (2S + POWER)
UPCI card Series 16C550 FLEX-ATX Titan om (2S + POWER)
REF: TS015
OUTLET
Specifications
- UPCI card that has 2 serial ports.
- Based on the UART 16C550.
- It allows to configure the transmission speed to 115.5, 230, 460 and 921 Kbps.
- PnP technology, with automatic configuration of IRQ and I/O port.
- Allows you to select the serial port from COM1 to COM7.
PVP
€10.70
€7.49
Price including VAT:
€9.21
PVD
€9.40
€6.58
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
OUTLET
Specifications
- UPCI card that has 2 serial ports.
- Based on the UART 16C550.
- It allows to configure the transmission speed to 115.5, 230, 460 and 921 Kbps.
- PnP technology, with automatic configuration of IRQ and I/O port.
- Allows you to select the serial port from COM1 to COM7.
Related products
More info

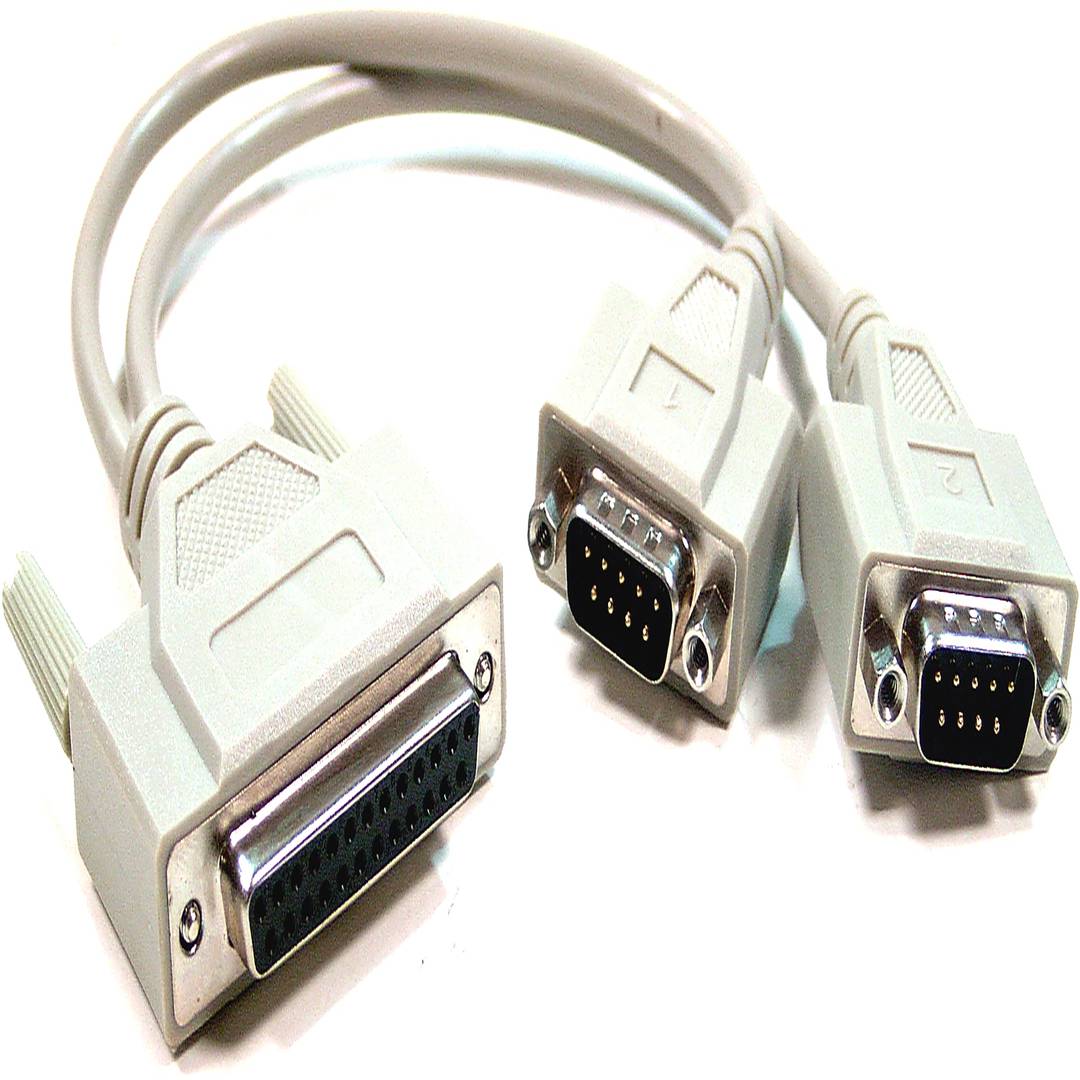

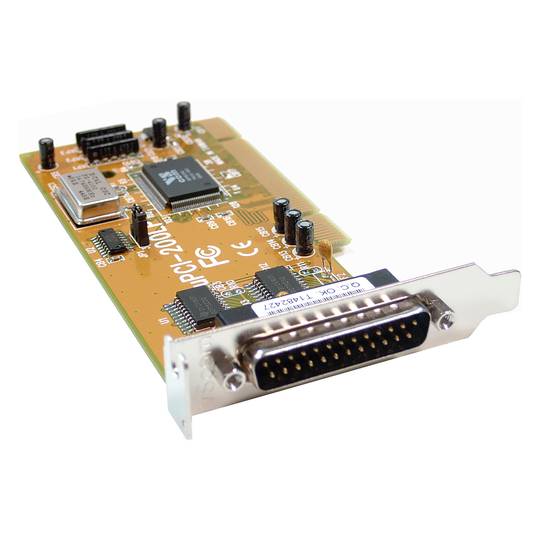

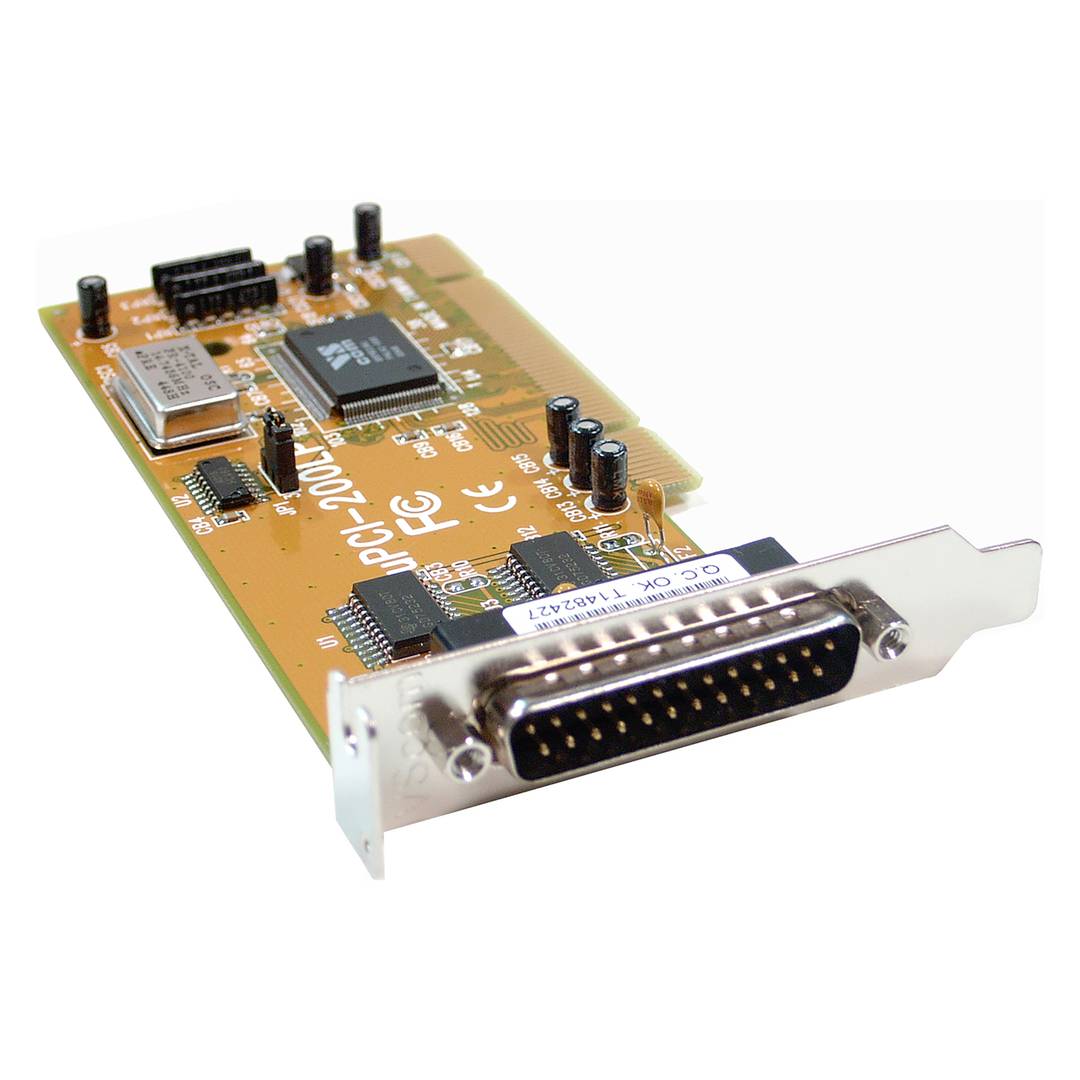

UPCI card that has 2 serial ports. Based on the UART 16C550. It allows to configure the transmission speed to 115.5, 230, 460 and 921 Kbps. PnP technology, with automatic configuration of IRQ and I/O port. Allows you to select the serial port from COM1 to COM7. Sharing the same IRQ for different ports. It has 2 DB9M outputs. Compatible with the most popular operating systems (Windows, Linux, etc.). UCPI version (Universal PCI) that supports dual voltage (3.3V/5V) which can be installed in any PCI slot (PCI-32, PCI-64 and PCI-X) of any voltage (3.3V/5V). Ideal for servers that use low voltage technology. Metallic bracket format of low profile type (Low Profile or Flex-ATX) for housings with slots for shorter brackets. It has a DB25M connection to which we connect a DB25H cable that bifurcates this connection in two DB9M. Model that supplies + 5VDC for pin-9 (signal pin or RING) with 500mA max. Ideal for connecting peripherals that support power through pin-9 serial port.
- Gross Weight: 290 g
- Number of packages: 1
Technical terms
- Communication Series
- PCI - MiniPCI
- ATX
- Differences between PNP and NPN
- Types of fuses
Communication Series
RS-232 (Recommended Standard 232, also known as EIA/TIA RS-232C) is an interface that designates a standard for the exchange of a series of binary data between a DTE (Data Terminal Equipment) and DCE (Data Communication Equipment , Data Communication Equipment), although there are others in which the RS-232 interface is also used. An equivalent definition published by the ITU is called V.24. The RS-232 is a connectorDB-25 type (25-pin), although it is normal to find the version of 9-pin (DE-9, or popularly also called DB-9), cheaper and even extended to certain types of peripherals (such as serial mouse PC).
