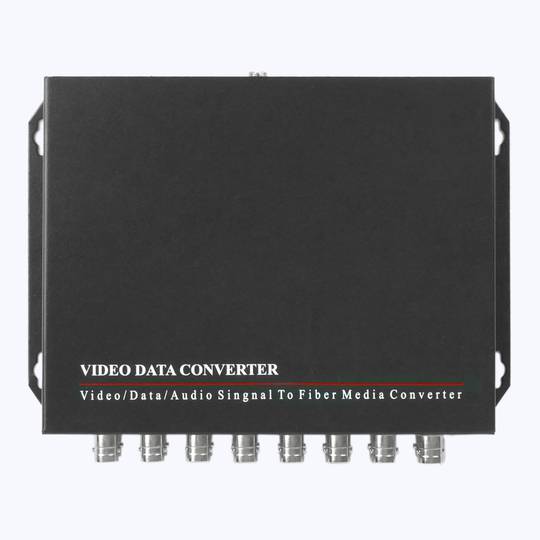

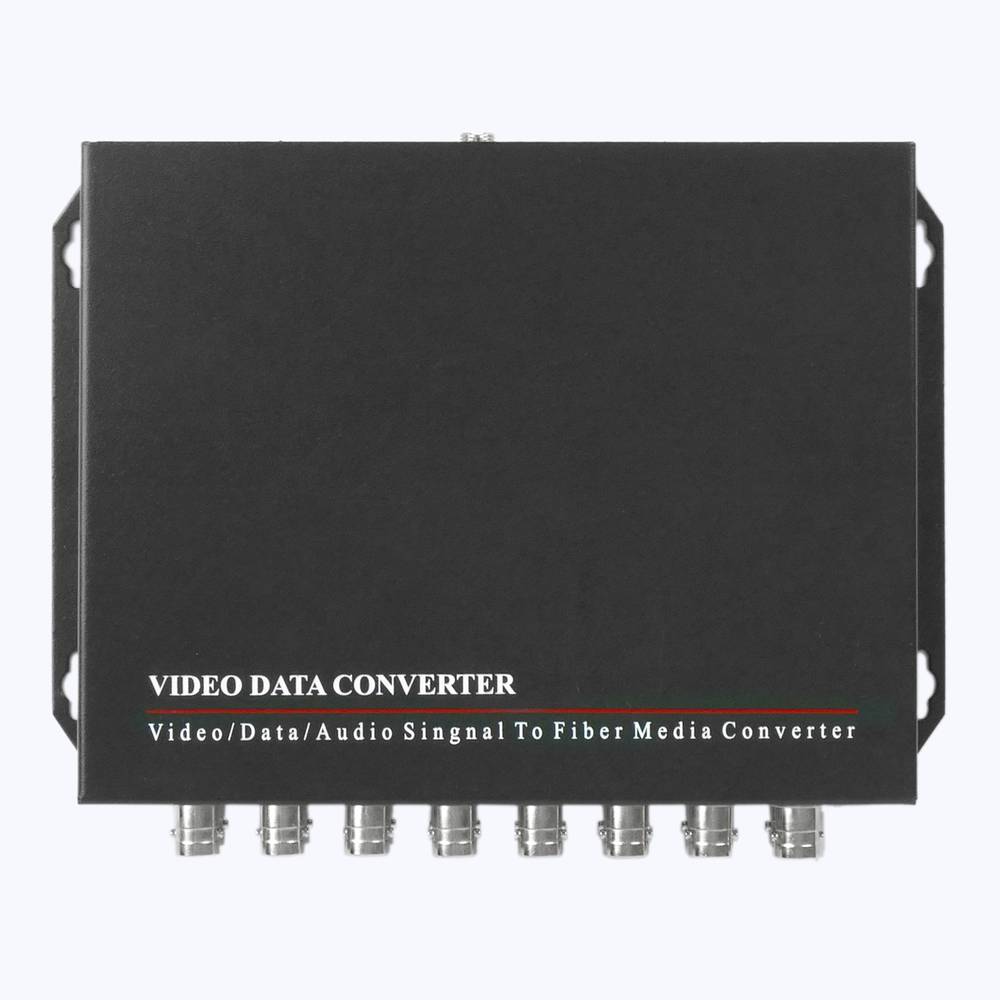

Video over fiber optic singlemode 20Km 16V RS232 RS485
Video over fiber optic singlemode 20Km 16V RS232 RS485
REF: CW020
Specifications
- Optical fiber distance up to 20 km
- Wavelength: 1310/1550 nm.
- Type of fiber optic cable and connectors: singlemode ST simplex.
- Each module has a female ST fiber connector, 16 female BNC video connectors, 5-pin terminal (RS232 and RS485) and 35mm jack for power.
- Video cameras or video sources are connected to the video transmitter module (RS232 data, RS485 and video signals).
Watch video
PVP
€169.06
Price including VAT:
€169.06
PVD
€148.59
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Optical fiber distance up to 20 km
- Wavelength: 1310/1550 nm.
- Type of fiber optic cable and connectors: singlemode ST simplex.
- Each module has a female ST fiber connector, 16 female BNC video connectors, 5-pin terminal (RS232 and RS485) and 35mm jack for power.
- Video cameras or video sources are connected to the video transmitter module (RS232 data, RS485 and video signals).
Related products
Purchased together regularly
More info

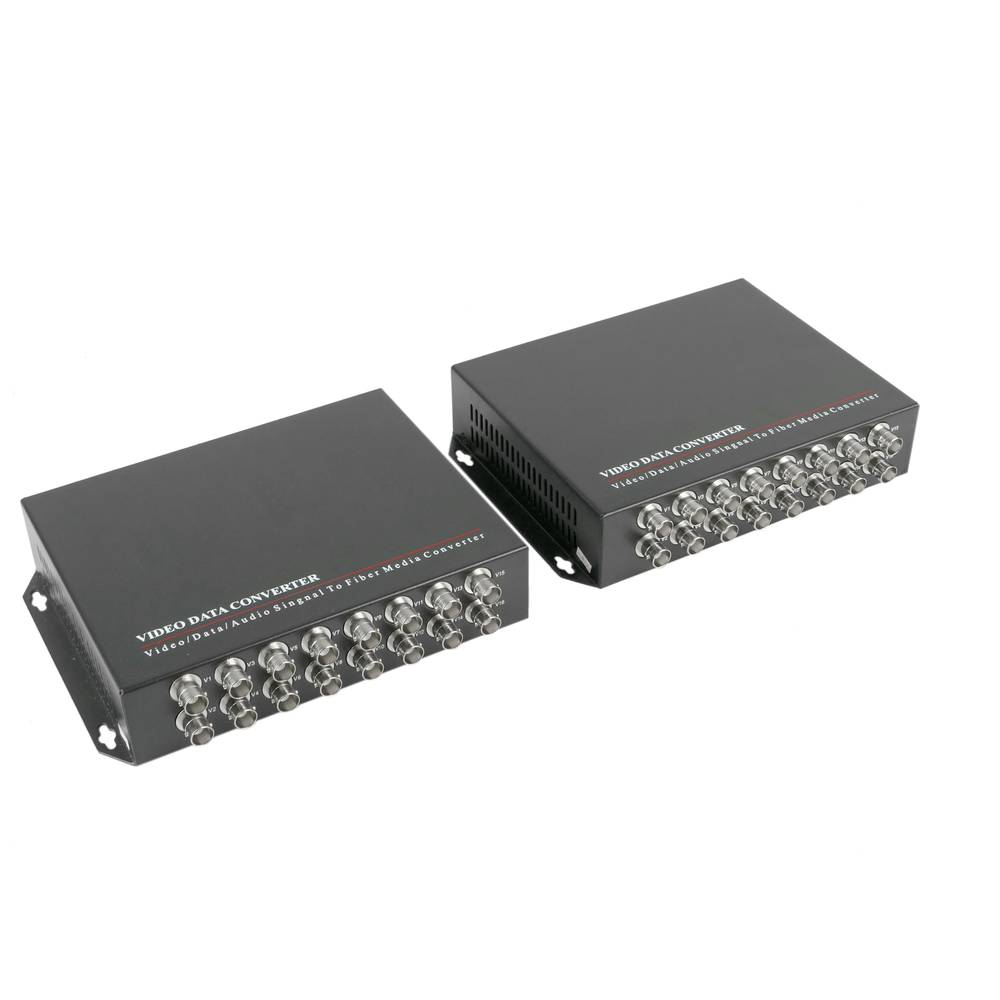

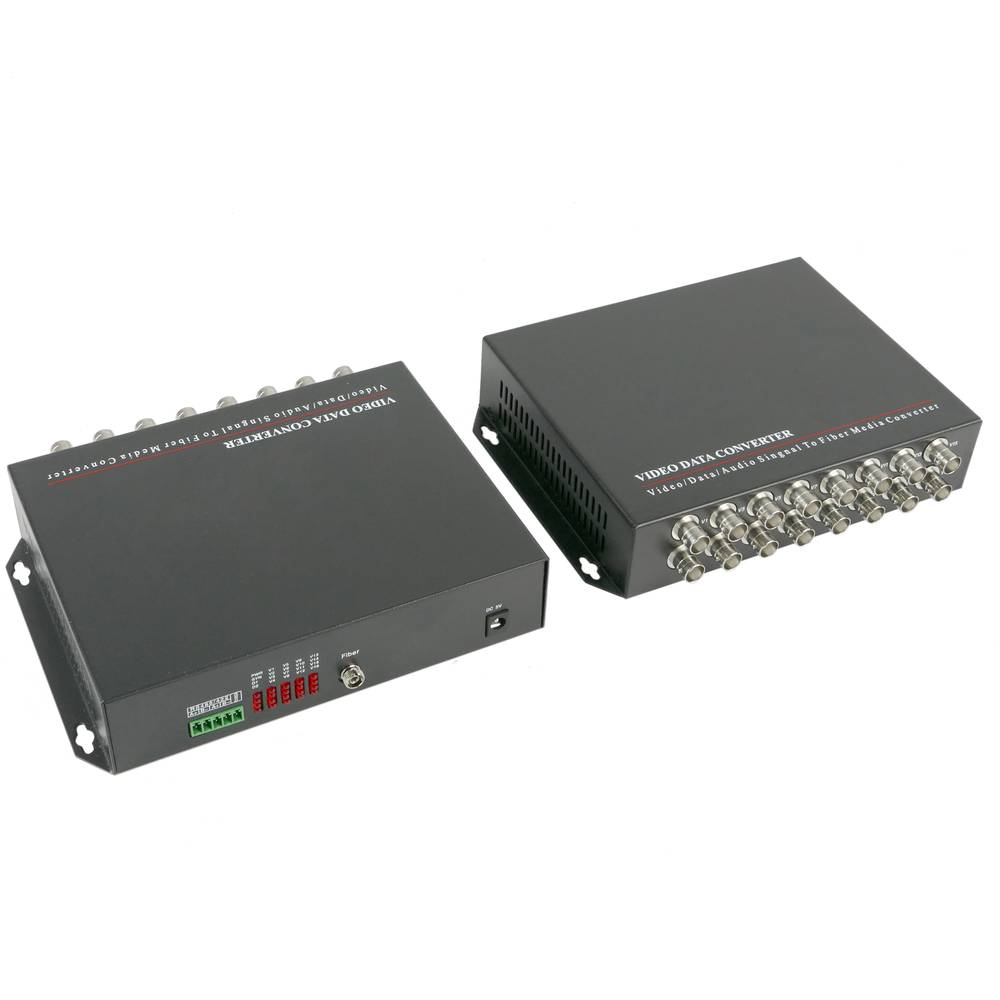

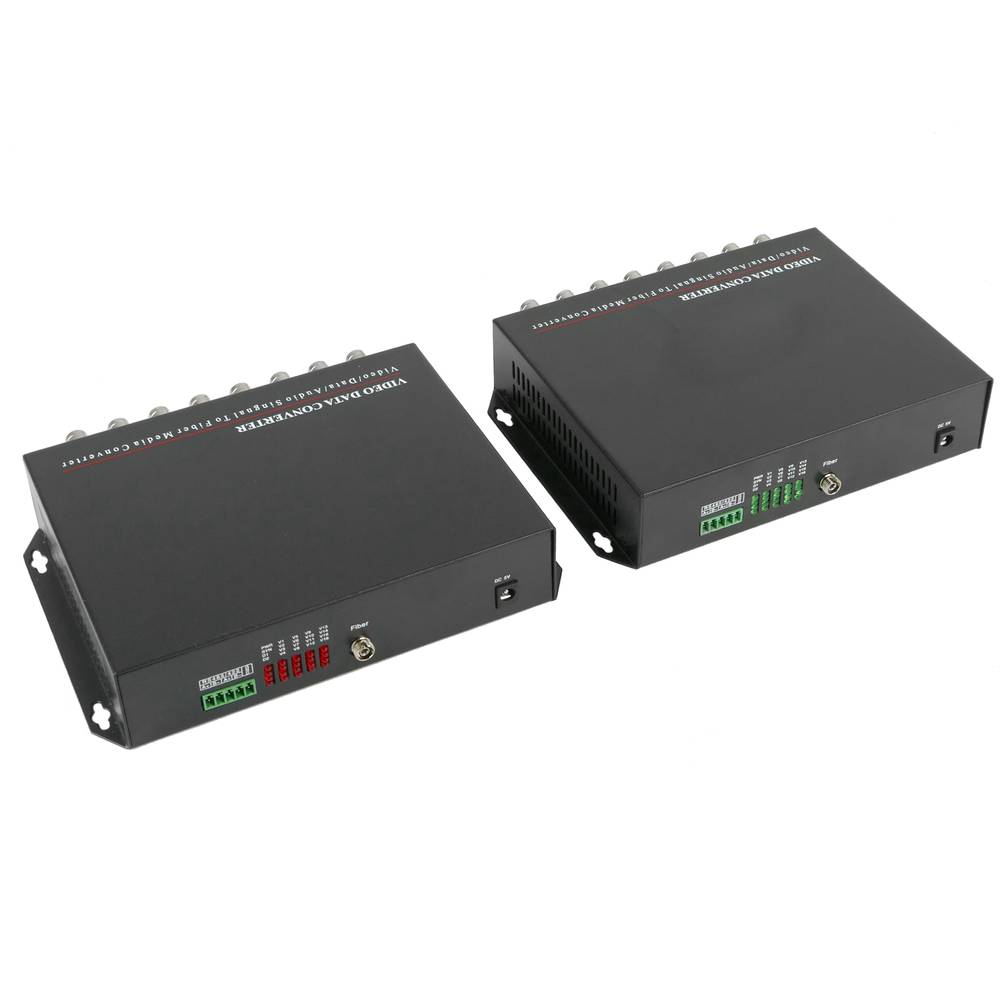

CVBS composite video transmitter (16 channels) and RS232 and RS485 data through single-mode optical fiber that allows a transmission distance of up to 20 km. Kit consists of 2 modules (transmitter and receiver) that are interconnected by the cable. fiber optic based on ST simplex connectors.
Specifications
Specifications
- Optical fiber distance up to 20 km
- Wavelength: 1310/1550 nm.
- Type of fiber optic cable and connectors: singlemode ST simplex.

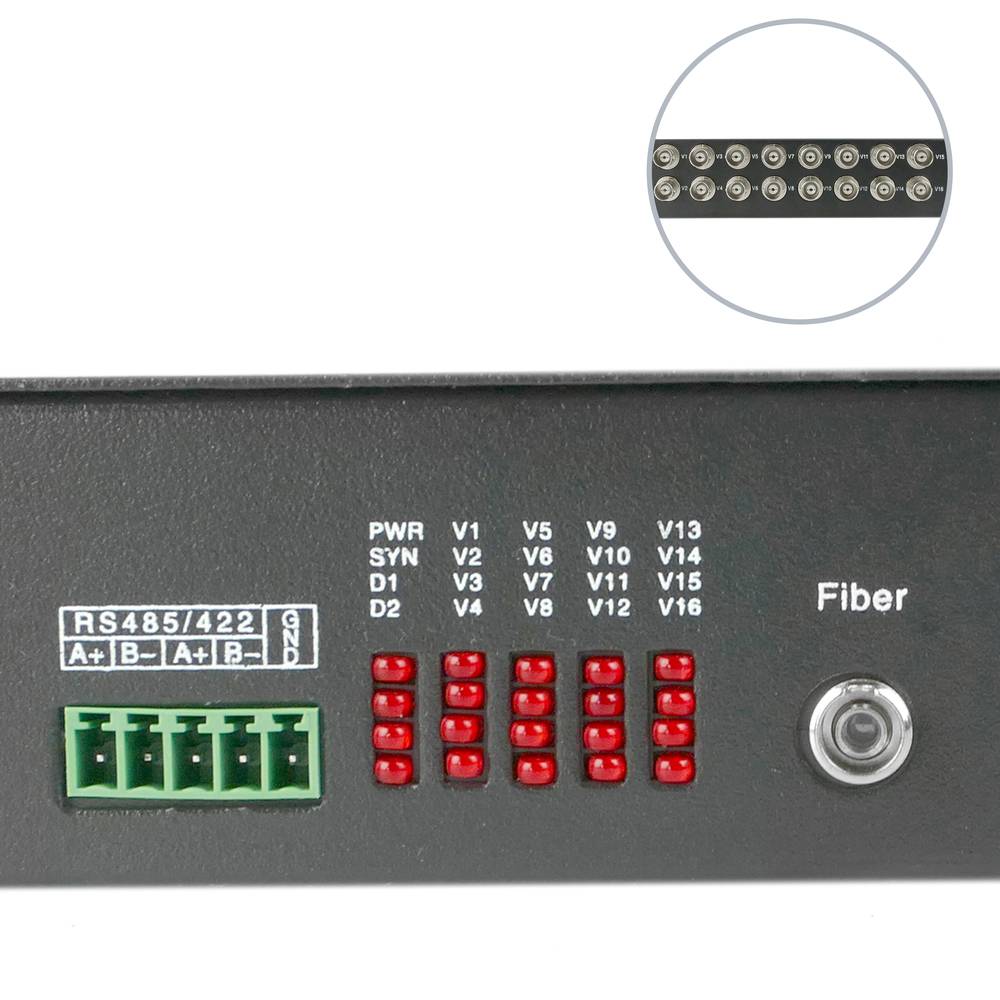

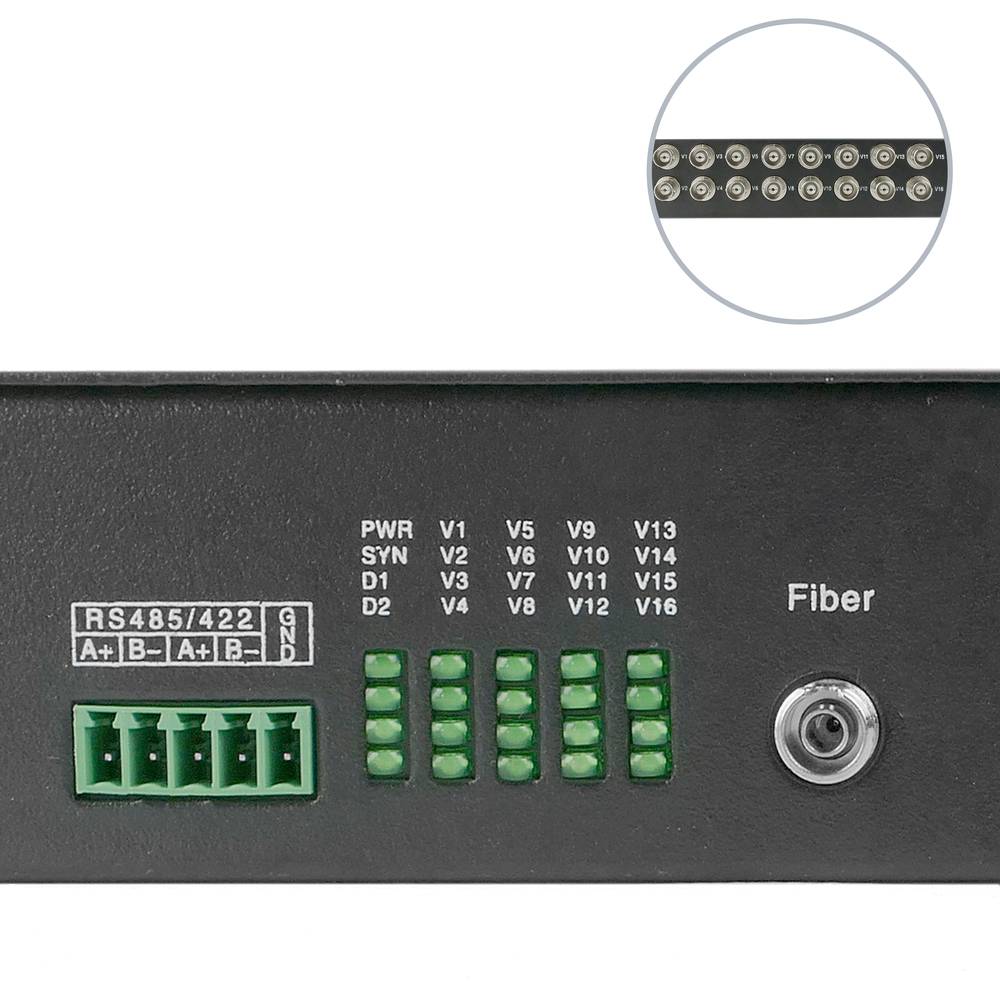

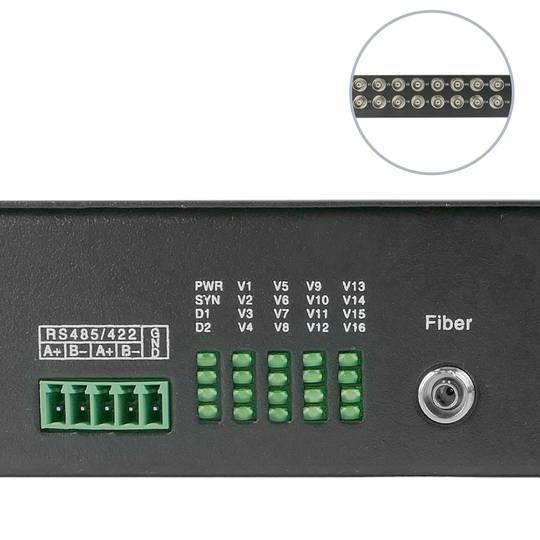

- Each module has a female ST fiber connector, 16 female BNC video connectors, 5-pin terminal (RS232 and RS485) and 35mm jack for power.
- Video cameras or video sources are connected to the video transmitter module (RS232 data, RS485 and video signals).
- The video receiver is connected to the receiver module.This module supplies the 16 video signals from the transmitter module. This module is sent RS232/RS485 control data that is sent to the camera.
- Compatible with PAL, SECAM and NTSC video systems.
- Each module requires a power supply of 5 VDC and 2 A (included).
- Mounted in black metal housings with tabs for fixing to the wall or chassis.
- Tamaof each module: 196 x 40 x 150 mm.
- Gross Weight: 1.9 kg
- Product size (width x depth x height): 19.6 x 4.0 x 15.0 cm
- Number of packages: 1
- Packages size: 32.5 x 24.5 x 10.0 cm
Technical terms
- Optic fiber
- BNC
- Communication Series
- NTSC and PAL
- RS232
- RS485
- CVBS
- OM1, OM2, OM3, OM4
- VDC
- Types of fiber optic polishing
Optic fiber
It gives transmission distance. Types fiberoptic
- Single mode (single mode): Only one mode light propagates. Allow distances up to 400 km and very high speeds. The usual size of 9/125 microns fiber is.
- Multimode (multi mode): The light is spread by more than one way. . Used for transmission at close range, no more than 2 Km Typical multimode fibers are according to ISO: OM1 (62., Data transmission is changing direction. In a duplex system, each of the fibers is used for transmission in one direction. Therefore, the duplex installations are faster and more efficient.
