Server rack cabinet 19 inch 20U 600x600x1000mm floor standing MobiRack by RackMatic
REF: WL001
Specifications
  • Rack 19 "from the high-quality RackMatic MobiRack range.
  • Cabinet size with installed wheels (width x depth x height): 600 x 600 x 1070 mm. Height of the wheels: 70 mm.
  • The 19 "front / rear rack racks are adjustable in depth, as they are mounted on rails that allow them to move in. Thickness of the rack profiles, 2mm.
  • Useful background of 487 mm (from the front frame to the back cover of the cabinet). Distance between front and rear frame of 375 mm (configurable by the user).
  • Compatible with ANSI / EIA standards RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (PART7).
play_button Watch video
More info
197.92
You save 106.57
Rack cabinet 19" standing 20U 600x600x1000mm black MobiRack by RackMatic
PVP
304.49
Price including VAT: 304.49
PVD
237.62
Shipping costs: 0,00 *
GB-SE1 1ES
2 years
warranty
14 days
returns
100%
safe

In stock
Available more than 10

More info
Specifications
  • Rack 19 "from the high-quality RackMatic MobiRack range.
  • Cabinet size with installed wheels (width x depth x height): 600 x 600 x 1070 mm. Height of the wheels: 70 mm.
  • The 19 "front / rear rack racks are adjustable in depth, as they are mounted on rails that allow them to move in. Thickness of the rack profiles, 2mm.
  • Useful background of 487 mm (from the front frame to the back cover of the cabinet). Distance between front and rear frame of 375 mm (configurable by the user).
  • Compatible with ANSI / EIA standards RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (PART7).

More info

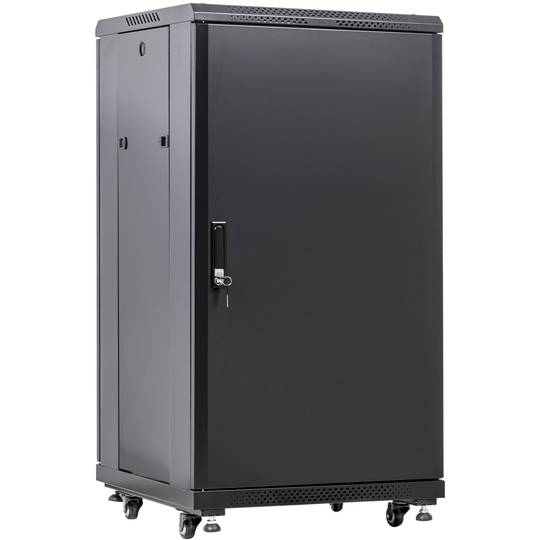

RackMatic MobiRack Rack 19" of 20U height and external size in mm 600 (width) x 600 (depth) x 1000 (height) (cabinet size without wheels or leveling feet). high quality SPCC of 1.2mm thickness, painted in black RAL9004.Rack cabinets that are supplied disassembled.Professional and suitable for the installation of server rooms mounted in 19 "rack, because they allow to be connected laterally.

Specifications
  • Rack 19 "from the high-quality RackMatic MobiRack range.
  • Cabinet size with installed wheels (width x depth x height): 600 x 600 x 1070 mm. Height of the wheels: 70 mm.

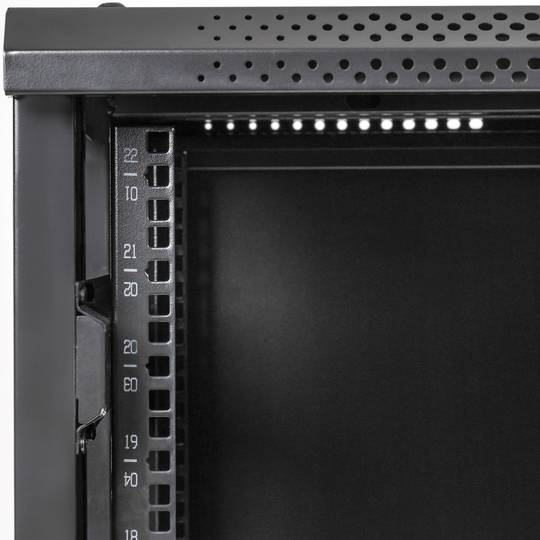

  • The 19 "front / rear rack racks are adjustable in depth, as they are mounted on rails that allow them to move in. Thickness of the rack profiles, 2mm.
  • Useful background of 487 mm (from the front frame to the back cover of the cabinet). Distance between front and rear frame of 375 mm (configurable by the user).
  • Compatible with ANSI / EIA standards RS-310-D, IEC60297-2, DIN41494 (PART1) and DIN41494 (PART7).
  • Compatible 19 "International Standards, ETSI.
  • Cabinet made of SPCC steel thickness 1.2mm, painted in black (RAL 9004).
  • Supplied disassembled in flat-pack, for greater transport comfort.
  • Maximum static load supported: 1,200 Kg.

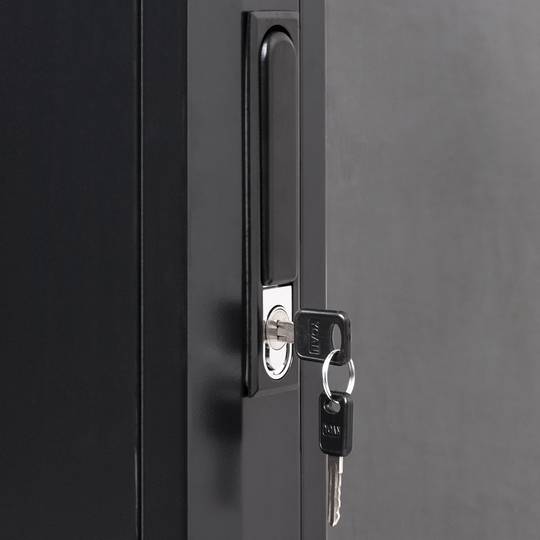

  • Front door with metal frame, glass and security key.

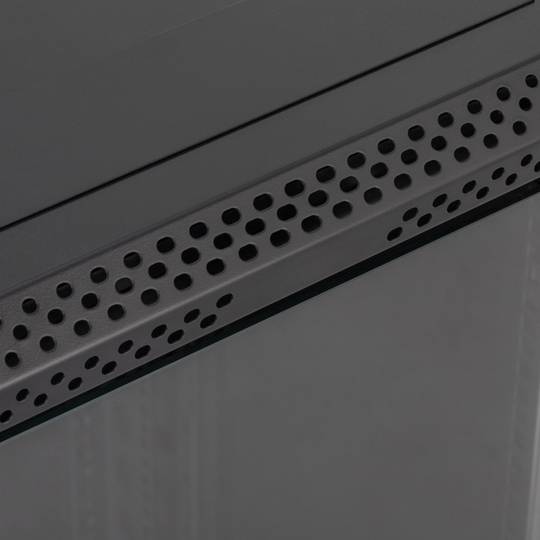

  • Rear door perforated sheet metal for better ventilation of the interior. With security key
  • Top / bottom cover with cable gland.

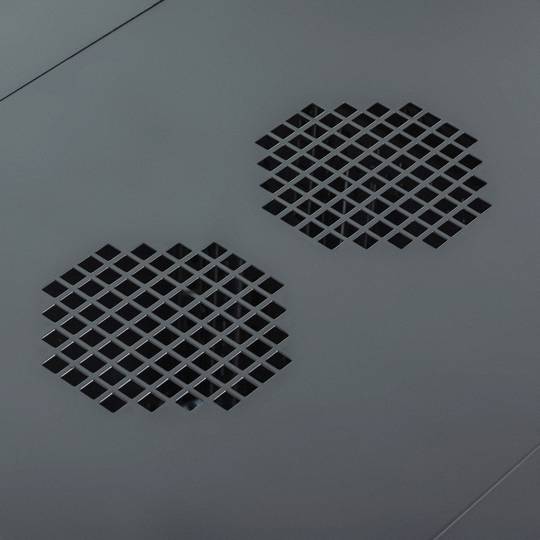

  • The top cover is adapted for the installation of 2 120mm side fans (fans not included).
  • Possibility of installation of upper ventilation cover (reference # WO2x).

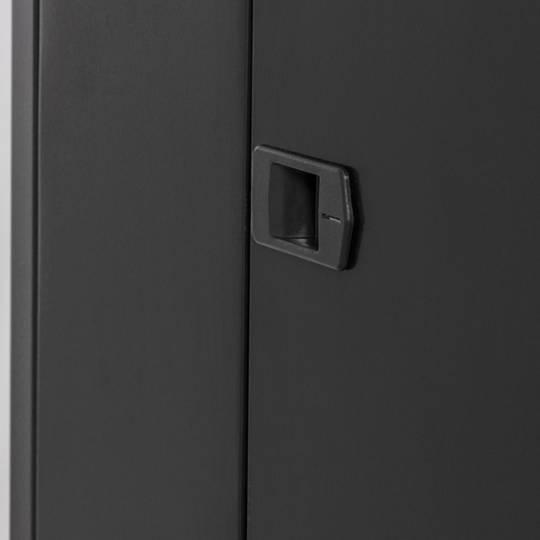

  • Removable side covers. They have perforation for the installation of lock with key. The lock is not included (reference # WO33).

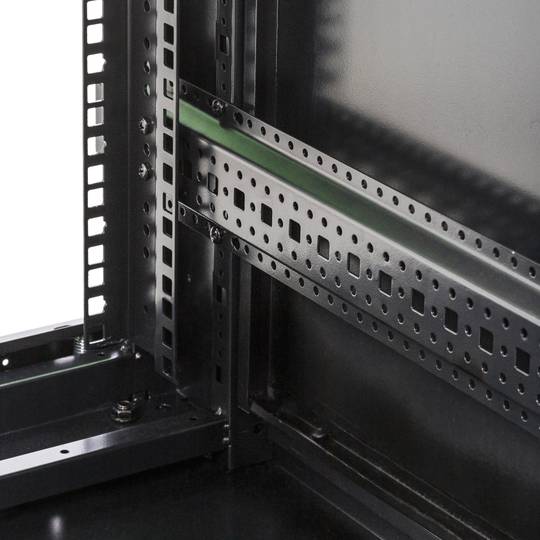

  • Lateral fixing system for trays. Width of the lateral fixation of 493 mm.
  • The cabinet is supplied with wheels to facilitate its mobility. Four leveling feet are supplied to configure the cabinet in a fixed position and adjustable in height.
  • Possibility of acquiring the union system of two cabinets (reference # WN92). It consists of 4 metal pieces that join 2 cabinets. For the union you must do without the installation of the side covers of both cabinets, by the sides that go together.
  • Includes hardware package for fixing 19 "rack accessories (20 units).
Packaging information
  • Bulk 1: 102 x 64 x 24 cm.
  • Bulk 2: 64 x 64 x 11 cm.
  • Total weight: 56.5 Kg.
  • Gross Weight: 50.5 kg
  • Product size (width x depth x height): 60.0 x 60.0 x 107.0 cm
  • Number of packages: 2
