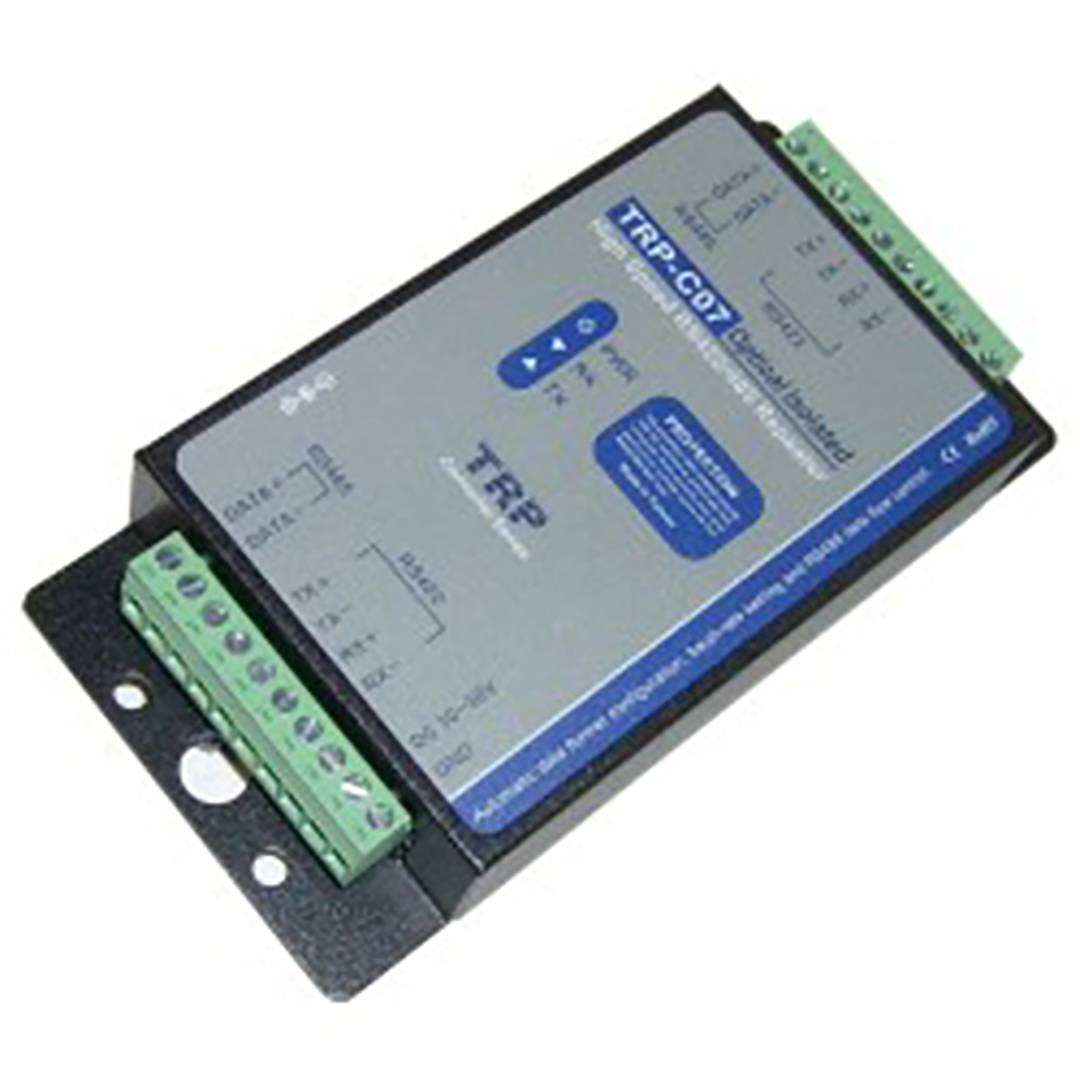

Signal Repeater RS-422/485 (Opto-Isolated)
Signal Repeater RS-422/485 (Opto-Isolated)
REF: TI013
Specifications
- Automatic supervision of the RS422/RS485 bus.
- Automatic control of the RS485 flow control.
- Supports speeds of up to 115.2Kbps.
- Automatic speed detection according to the format of the data.
- Soportto insulation protection for 3000VDC.
PVP
€261.03
Price including VAT:
€261.03
PVD
€235.35
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- Automatic supervision of the RS422/RS485 bus.
- Automatic control of the RS485 flow control.
- Supports speeds of up to 115.2Kbps.
- Automatic speed detection according to the format of the data.
- Soportto insulation protection for 3000VDC.
Related products
More info
RS422 and RS485 signal repeater that allows to exceed the limit of 1200m of wiring or for those environments in which it is necessary to feed the signal.
Specifications
Specifications
- Automatic supervision of the RS422/RS485 bus.
- Automatic control of the RS485 flow control.
- Supports speeds of up to 115.2Kbps.
- Automatic speed detection according to the format of the data.
- Soportto insulation protection for 3000VDC.
- Protection against overloads.
- All RS422/RS485 signals provide electrical protection.
- LED indicators of power, Tx and Rx.
- Supports power through jack with external source or through the terminal block itself.
- Requires power type DC + 10V to + 30V.
- Connection via terminal block with screws that accept AWG cables12 to AWG22.
- Maximum amplification distance of up to 1250m.
- Input and output: 2 cables for RS485 and 4 cables for RS422.
- Asynchronous data format with any combination of bits, parity and stop.
- Gross Weight: 390 g
- Product size (width x depth x height): 15.2 x 7.3 x 2.7 cm
- Number of packages: 1
- Packages size: 18.5 x 15.0 x 3.6 cm
- Master-pack: 4
Technical terms
- RS485
RS485
It is a special multi point communication for industrial machinery by its format adapted to long distance and heavy machinery. The connector is used to connect the DB9 serial port or popularly called. One characteristic is that it is able to greatly reduce the noise so that the distance is much greater.
