USB to RS-422/485 Titan PRO (2-Port DINRAIL)
USB to RS-422/485 Titan PRO (2-Port DINRAIL)
REF: UB074
OUTLET
Specifications
- Maximum speed of 921.6Kbps.
- Does not require power supply.
- 128-byte FIFO.
- RS422 signals: RS422 TxD +/-, RxD +/-, RTS +/-, CTS +/-, GND.
- RS485 signals: Data +/-, GND.
Watch video
PVP
€133.92
€32.14
Price including VAT:
€32.14
PVD
€117.69
€28.25
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
OUTLET
Specifications
- Maximum speed of 921.6Kbps.
- Does not require power supply.
- 128-byte FIFO.
- RS422 signals: RS422 TxD +/-, RxD +/-, RTS +/-, CTS +/-, GND.
- RS485 signals: Data +/-, GND.
Related products
Keywords
Did not find what you were looking for? These topic could help you
More info

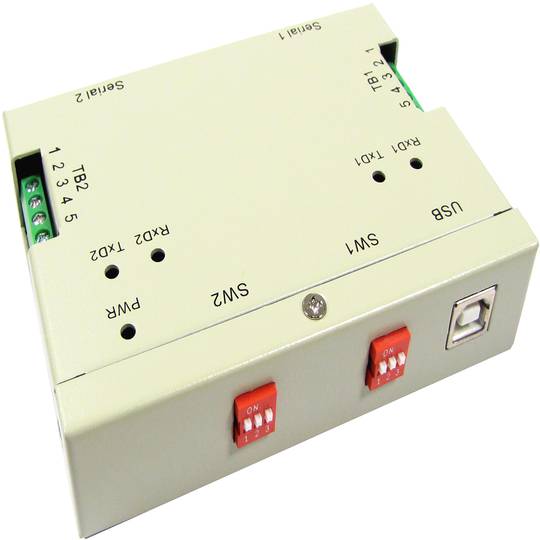

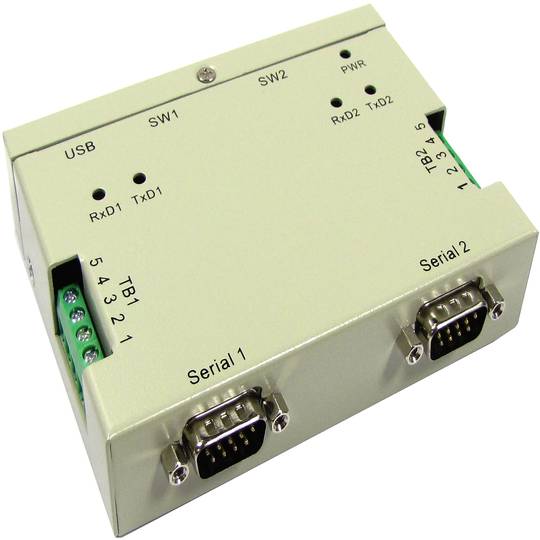

USB adapter to two serial ports RS-422 and RS485 in industrial DIN rail format. It is a robust converter mounted in metal casing.
Specifications
Specifications
- Maximum speed of 921.6Kbps.
- Does not require power supply.
- 128-byte FIFO.
- RS422 signals: RS422 TxD +/-, RxD +/-, RTS +/-, CTS +/-, GND.
- RS485 signals: Data +/-, GND.
- Controller compatiwith Windows and Linux environments.
- It has 2 x DB9-Male and 2 x Terminal-Block.
- Case size: 115 x 84 x 25 mm.
- Size with ears and connectors: 137 x 84 x 25 mm.
- Protection downloads: 25KV.
- Optical Isolation: 25KV ESD.
- External switch (DIP) to configure operative.
- Output powered optionally for those devices that are powered from the serial port (5V).
- Gross Weight: 500 g
- Number of packages: 1
Technical terms
- DIN
- RS485
- Reversible USB Type-C
- USB 3.0
- Communication Series
- Mini USB
- MicroUSB
- USB
DIN
The DIN is a standard that was developed by the "Deutsches Institut für Normung" (one might call the national standards organization in Germany). The DIN is facing many sectors, but we have tried to focus on the DIN-oriented electronics and computing. In the case of Enclosures means qualifying under the German legislation on racks and is standardized to DIN 41494-7.
