Video by 20Km singlemode fiber optic RS485 8V
Video by 20Km singlemode fiber optic RS485 8V
REF: CW018
Specifications
- CVBS composite video transmitter (8 channels) and data through fiber optics.
- Optical fiber distance up to 20 km
- Type of fiber optic cable and connectors: singlemode FC simplex. Wavelength: 1310/1550 nm.
- Each module has a female FC fiber connector, 8 female BNC video connectors, 3-pin RS485 terminal and 35mm jack for power.
- Video cameras or video sources are connected to the video transmitter module (RS485 data and video signals).
Watch video
PVP
€139.99
Price including VAT:
€139.99
PVD
€122.49
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
14 daysreturns
100%safe
Specifications
- CVBS composite video transmitter (8 channels) and data through fiber optics.
- Optical fiber distance up to 20 km
- Type of fiber optic cable and connectors: singlemode FC simplex. Wavelength: 1310/1550 nm.
- Each module has a female FC fiber connector, 8 female BNC video connectors, 3-pin RS485 terminal and 35mm jack for power.
- Video cameras or video sources are connected to the video transmitter module (RS485 data and video signals).
Related products
More info

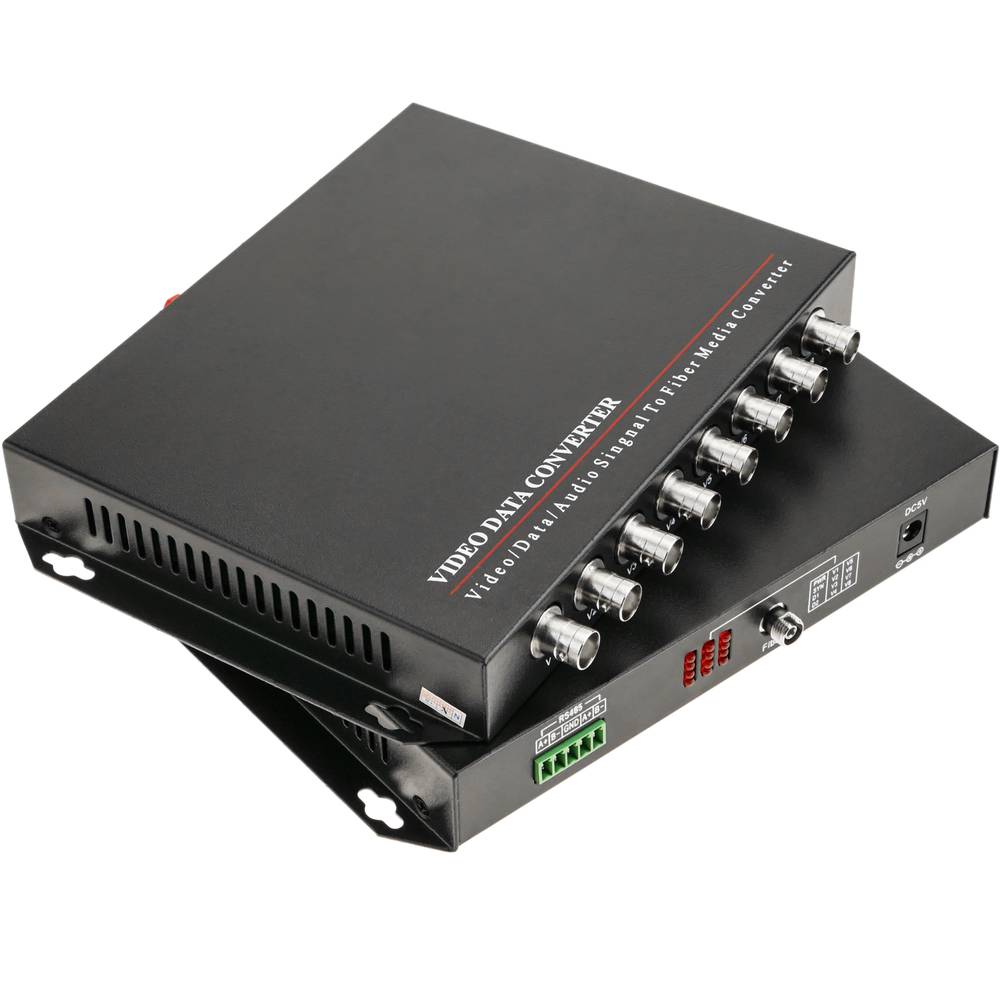

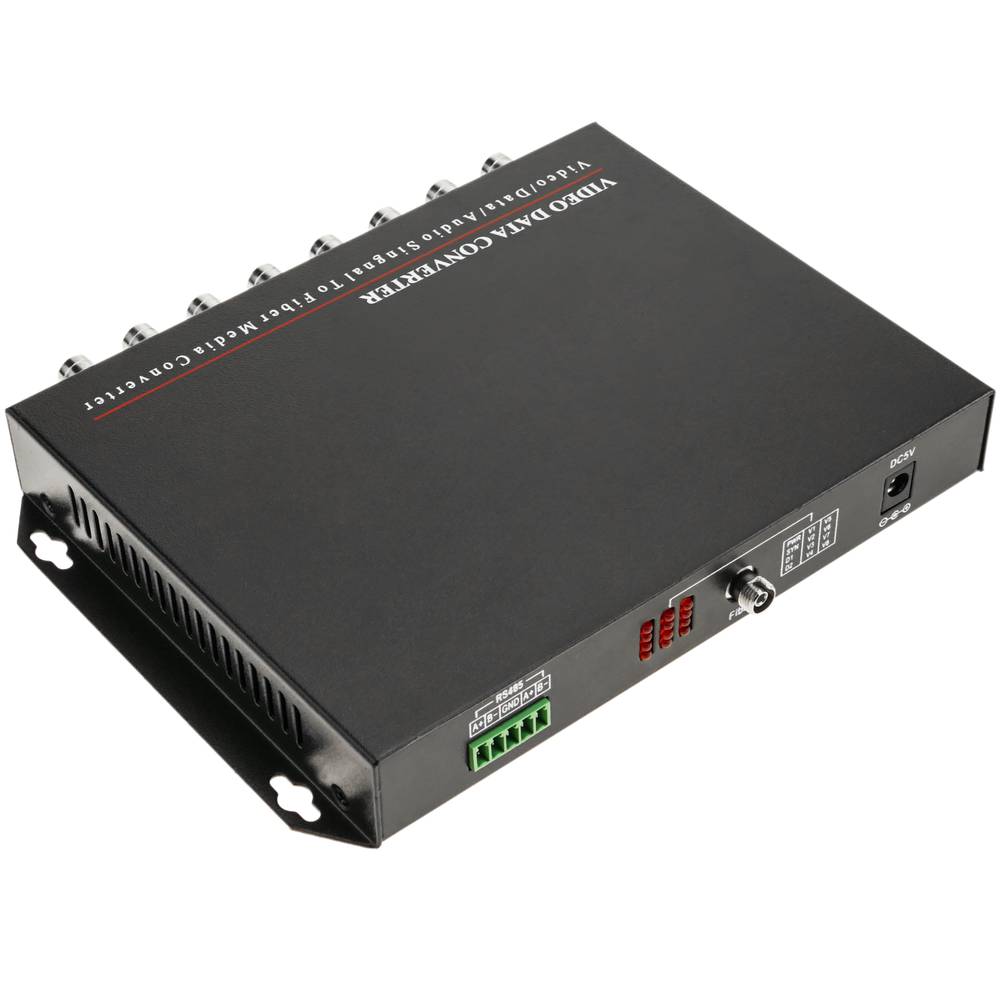

CVBS composite video transmitter (8 channels) and RS485 data via single-mode optical fiber that allows a transmission distance of up to 20 km. Kit consists of 2 modules (transmitter and receiver) that are interconnected by fiber optic cable based on FC simplex connectors.
Specifications
Specifications
- CVBS composite video transmitter (8 channels) and data through fiber optics.
- Optical fiber distance up to 20 km
- Type of fiber optic cable and connectors: singlemode FC simplex. Wavelength: 1310/1550 nm.

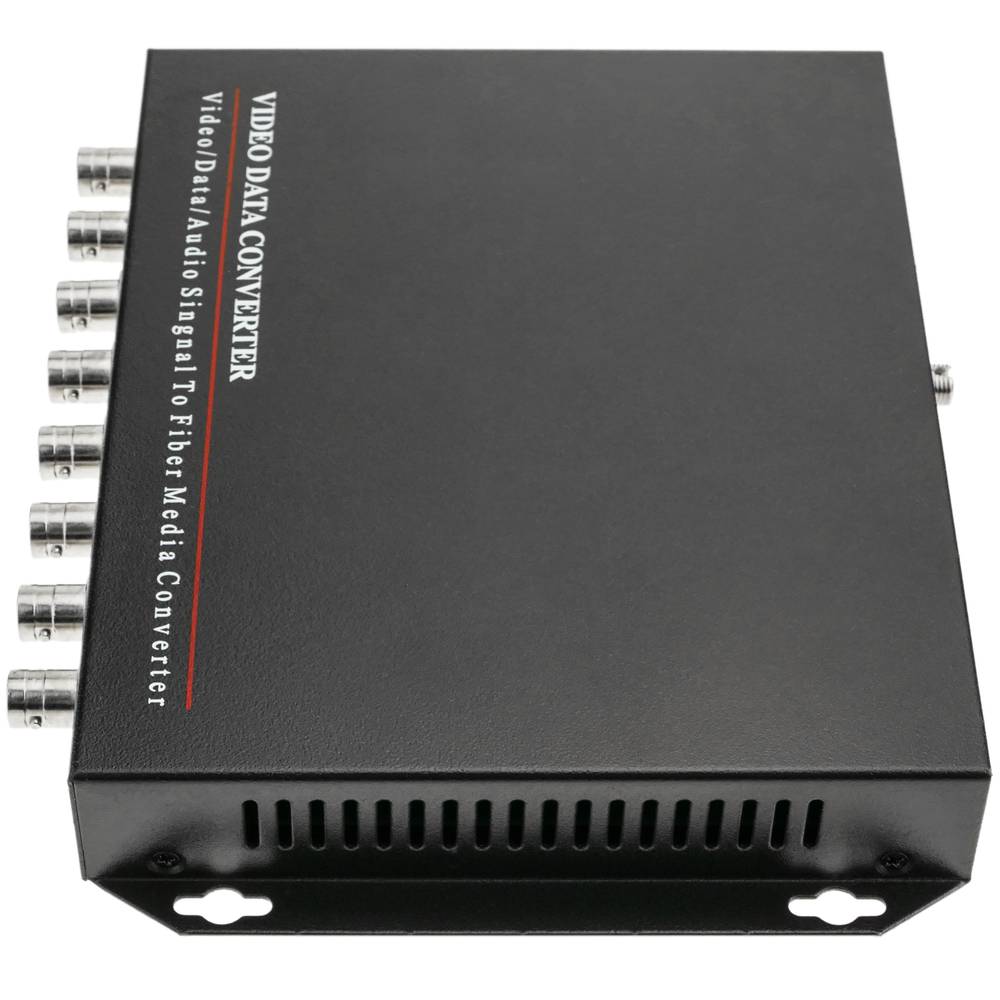

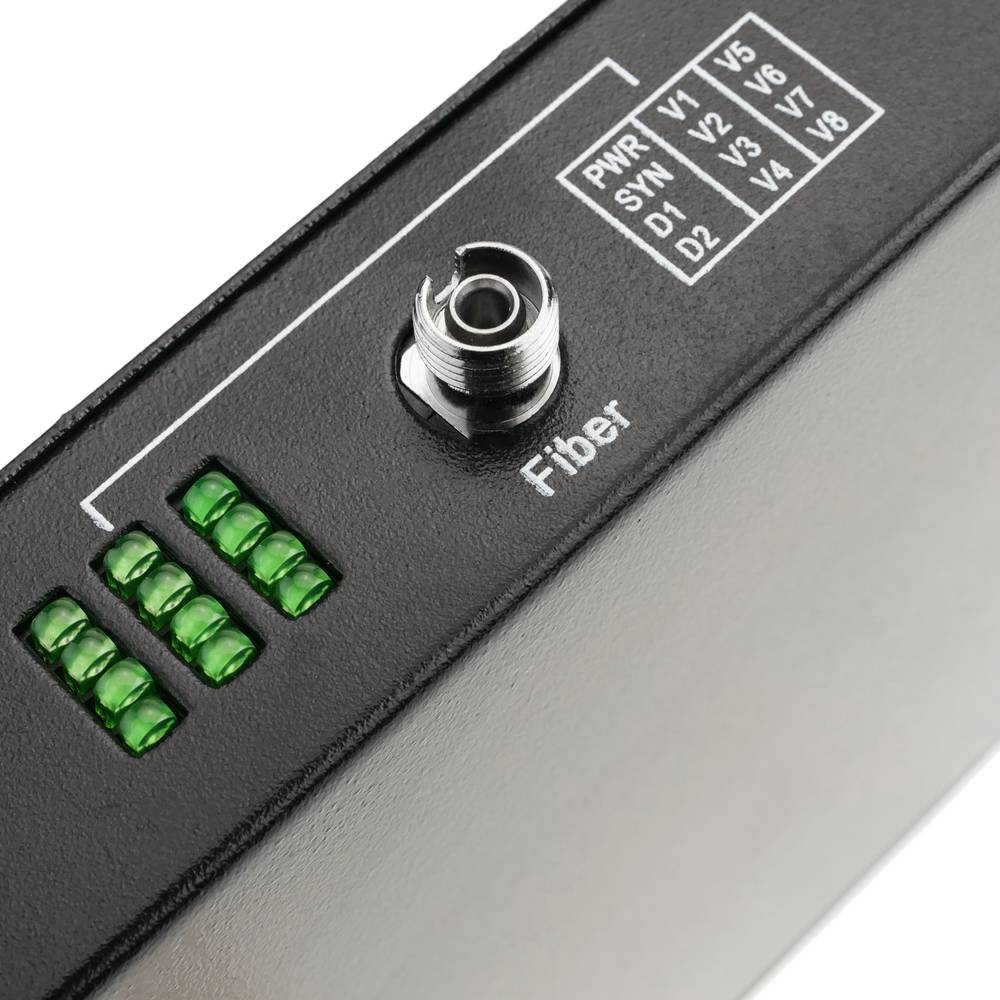

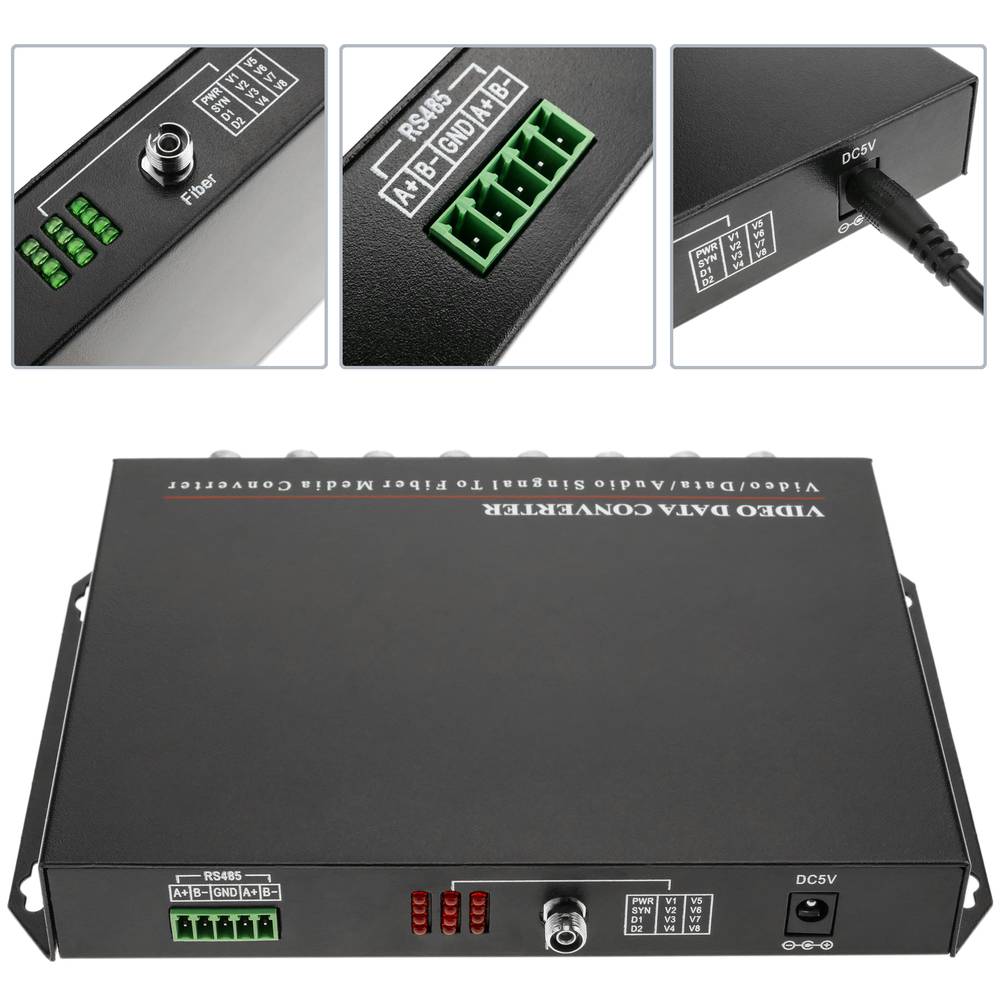

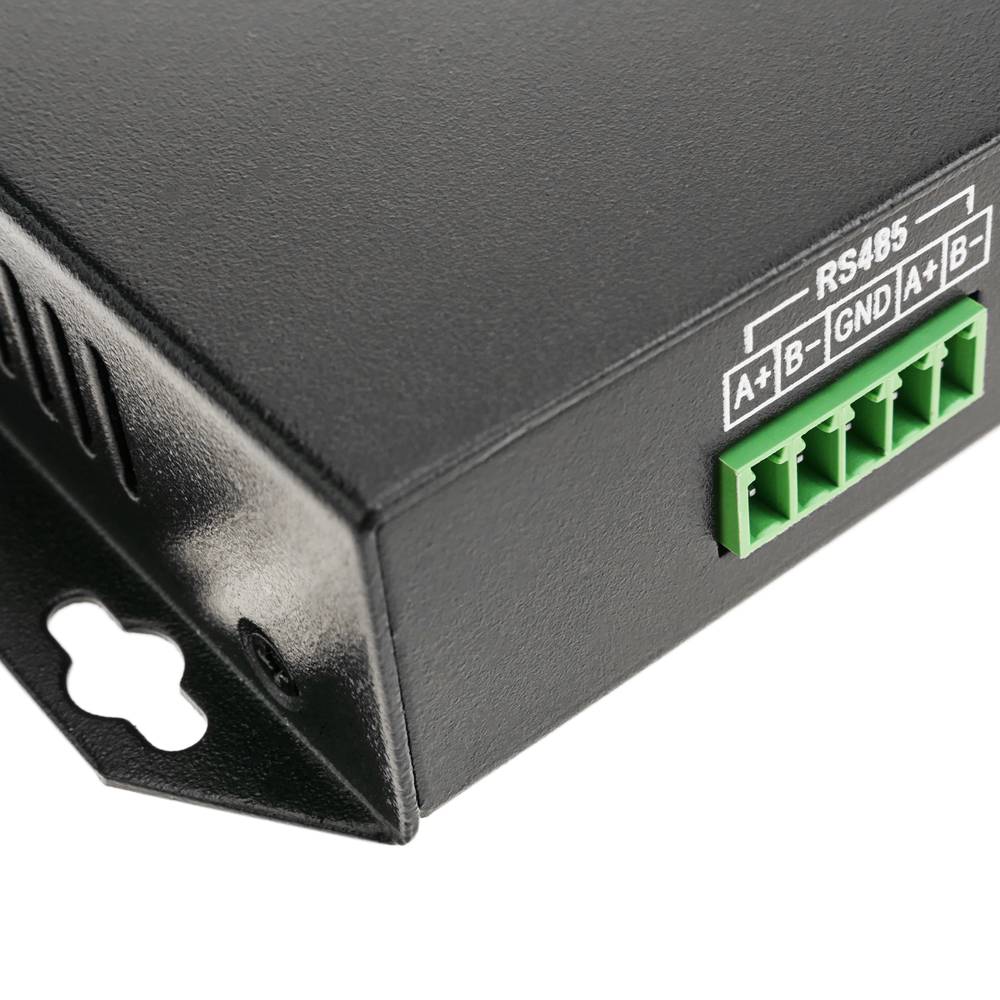

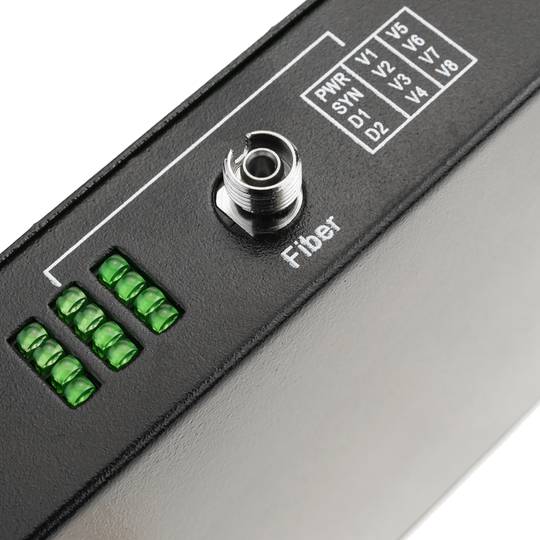

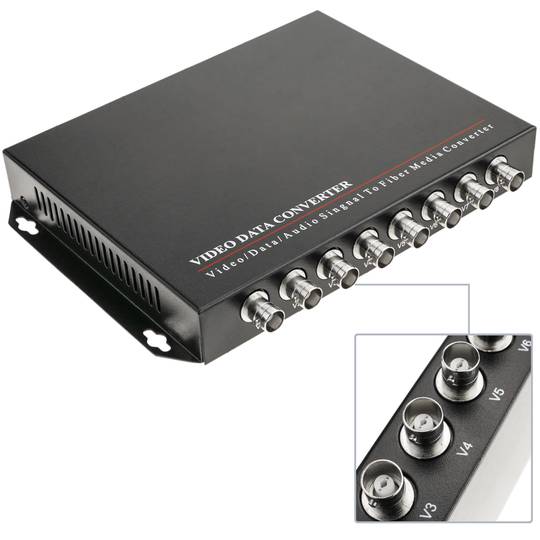

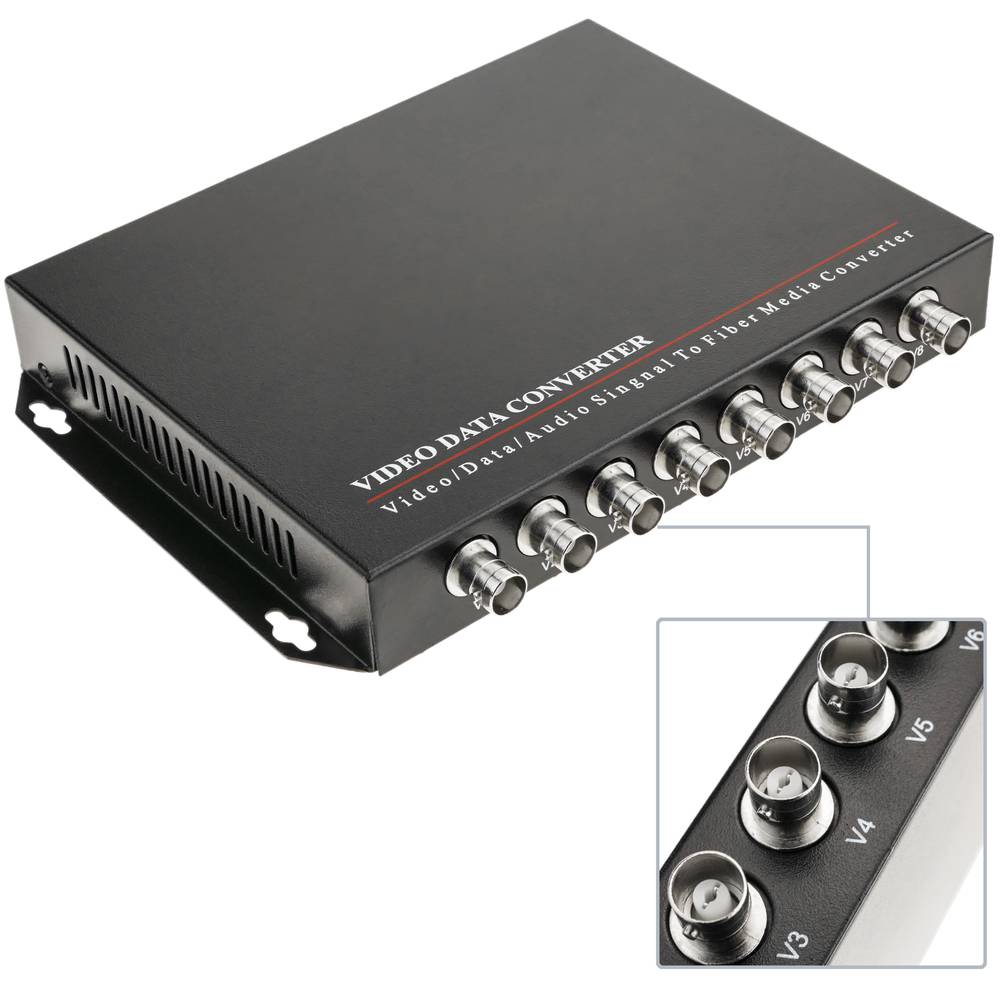

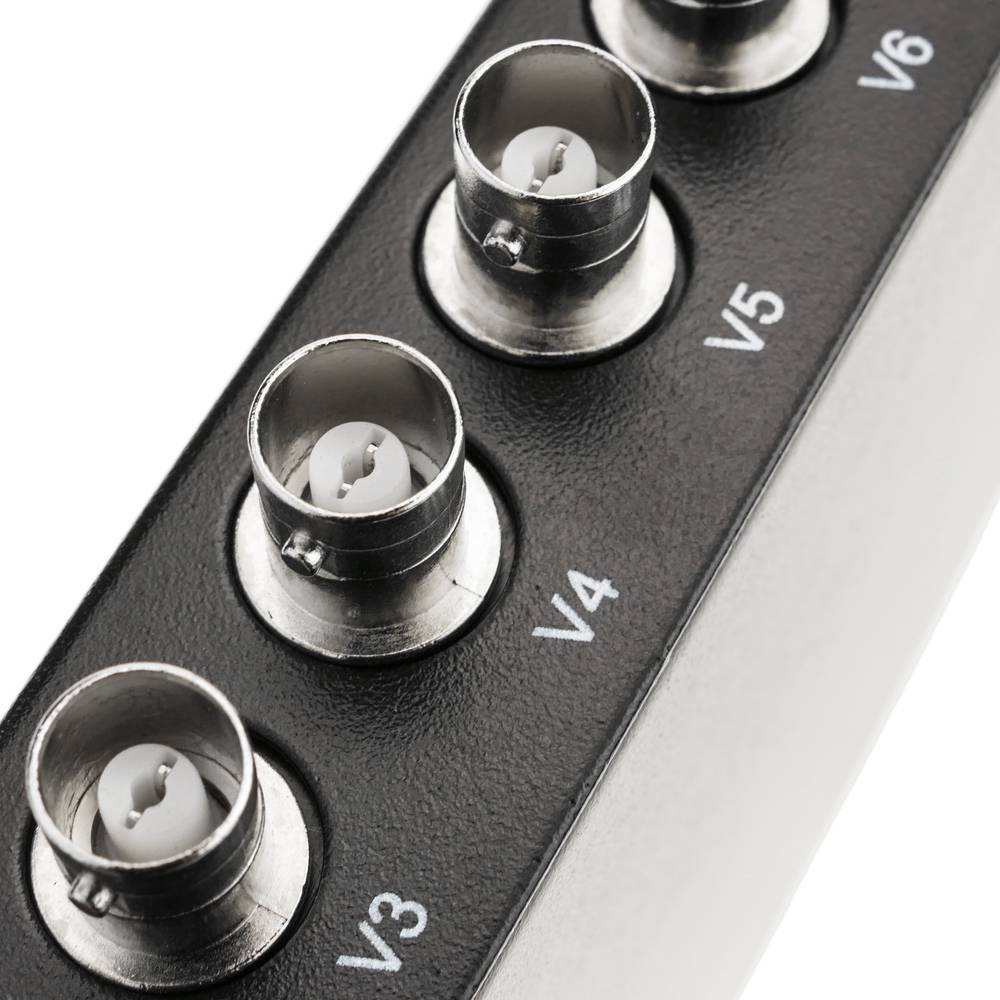

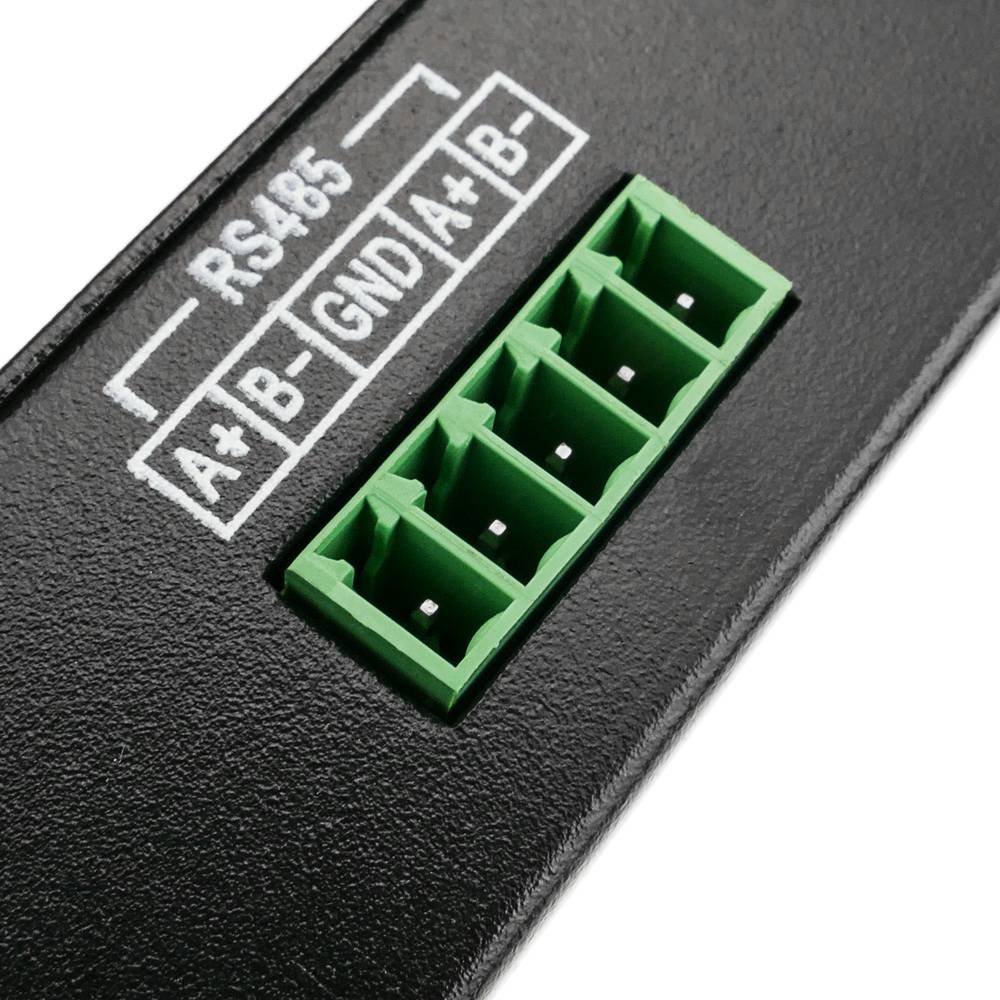

- Each module has a female FC fiber connector, 8 female BNC video connectors, 3-pin RS485 terminal and 35mm jack for power.
- Video cameras or video sources are connected to the video transmitter module (RS485 data and video signals).
- The video receiver is connected to the receiver module. This module supplies the 8 video signals from the transmitter module. This module is sent RS485 control data that is sent to the camera.
- Compatible with PAL, SECAM and NTSC video systems.

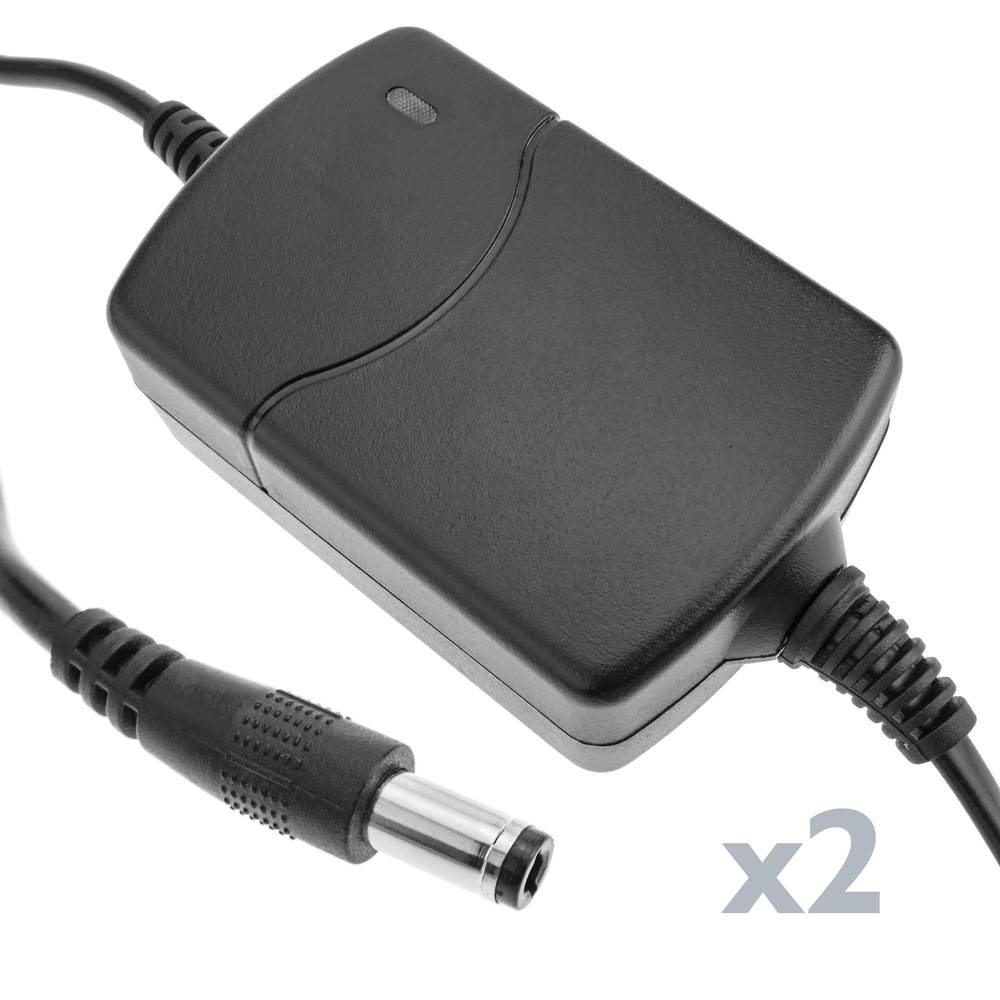

- Each module requires a power supply of 5 VDC and 2 A (included).
- Mounted in black metal casings with tabs for fixing to the wall or chassis.
- Size of each module: 195 x 160 x 26 mm.
- Gross Weight: 1.57 kg
- Product size (width x depth x height): 19.5 x 16.0 x 2.6 cm
- Number of packages: 1
- Packages size: 32.5 x 25.0 x 9.5 cm
Technical terms
- Optic fiber
- BNC
- NTSC and PAL
- RS485
- CVBS
- OM1, OM2, OM3, OM4
- VDC
- Types of fiber optic polishing
Optic fiber
It gives transmission distance. Types fiberoptic
- Single mode (single mode): Only one mode light propagates. Allow distances up to 400 km and very high speeds. The usual size of 9/125 microns fiber is.
- Multimode (multi mode): The light is spread by more than one way. . Used for transmission at close range, no more than 2 Km Typical multimode fibers are according to ISO: OM1 (62., Data transmission is changing direction. In a duplex system, each of the fibers is used for transmission in one direction. Therefore, the duplex installations are faster and more efficient.
