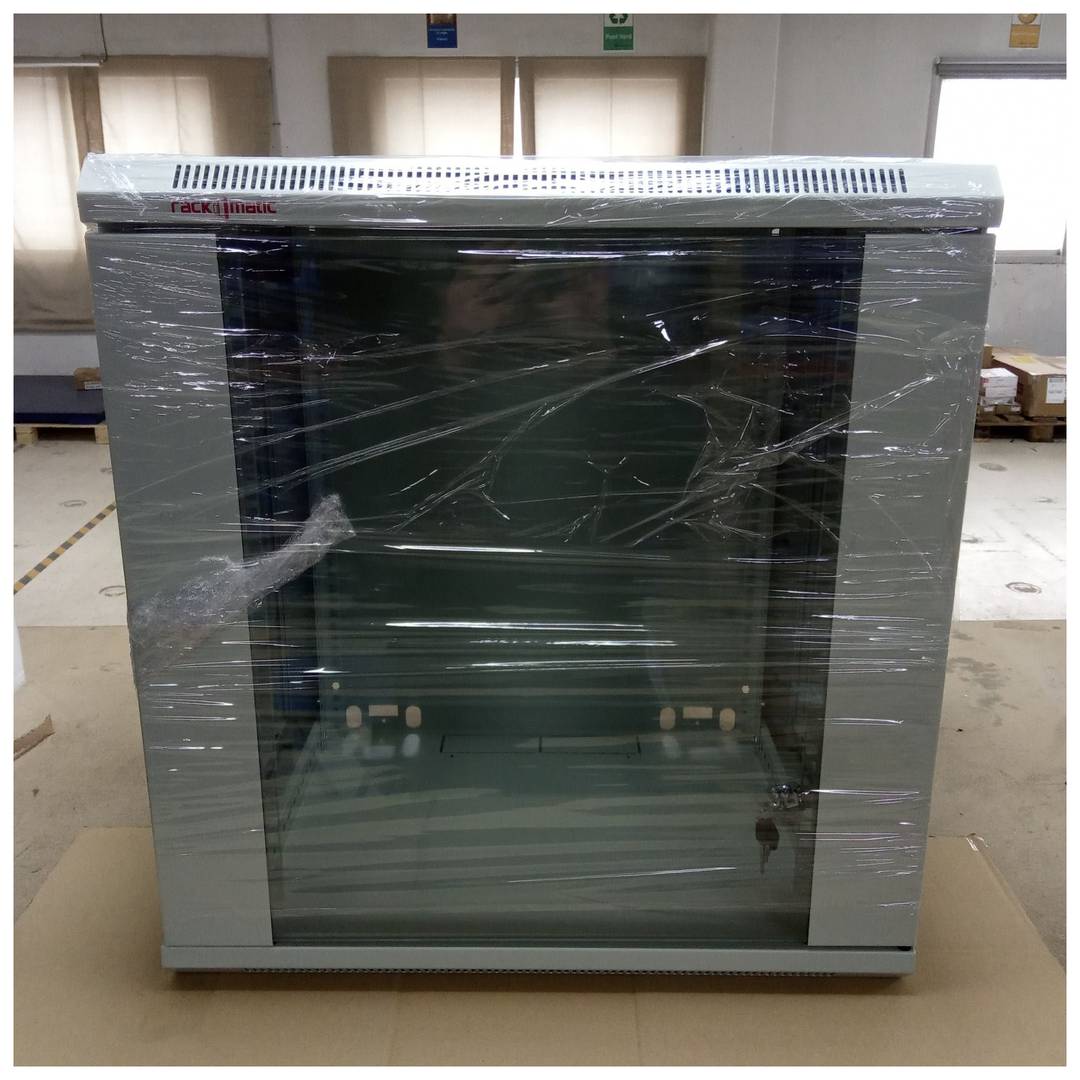

Wall mounted rack cabinet 19" 12U 600x450x635mm wall white SOHORack by RackMatic
Wall mounted rack cabinet 19" 12U 600x450x635mm wall white SOHORack by RackMatic
REF: SA961
RENEWED

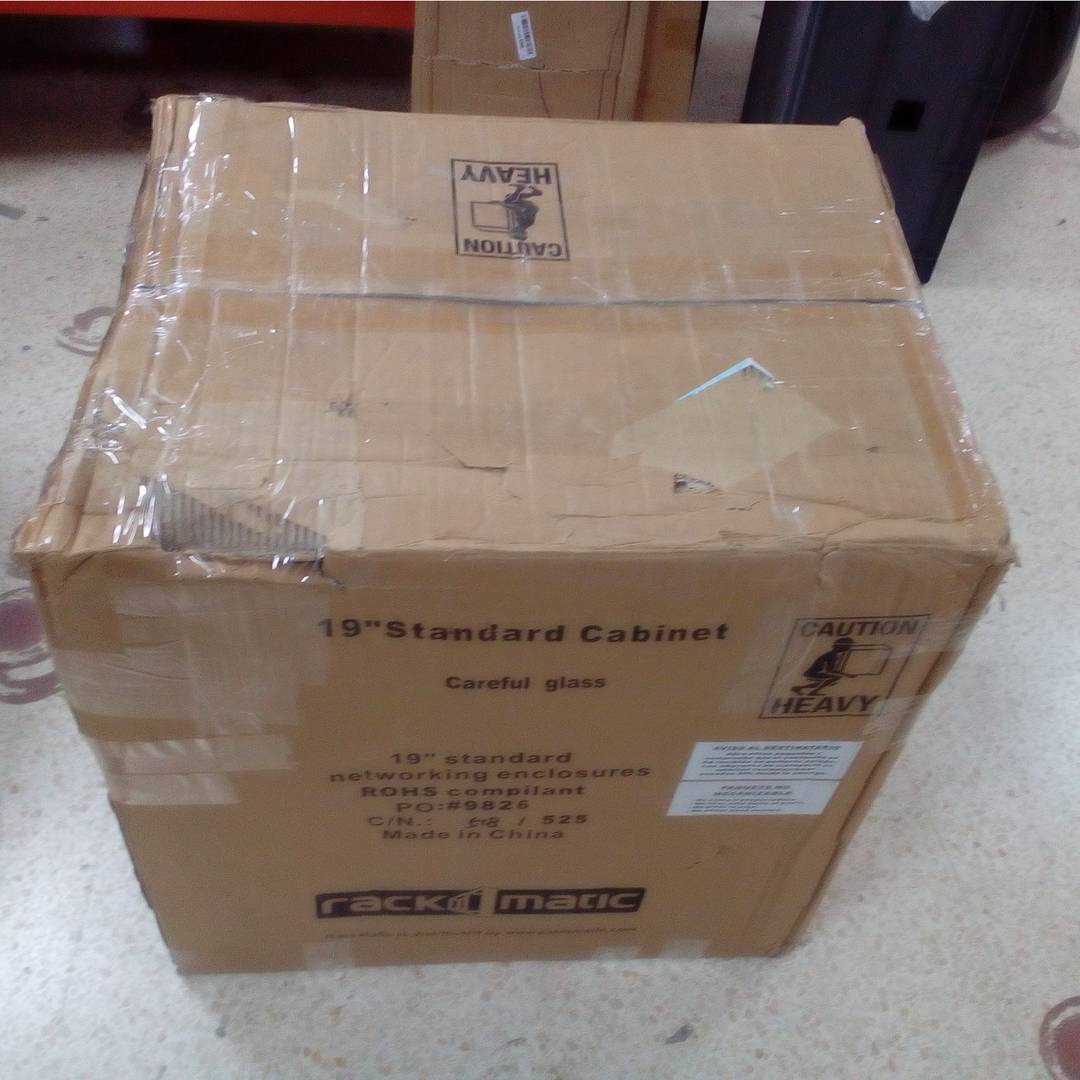

Reconditioned product with some mark or slight blow. Damaged or non-original packaging. Fully functional.
Original product specifications
- Complete structure with front guides for 19" rack, adjustable in depth to adapt to any need.
- Door with security glass that gives it a more attractive design and key lock. 180 degree door opening.
- Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate.
- Drilling for up to two 12 cm fans in the top panel (fans not included).
- Holes in the back plate for fixing the cabinet to the wall.
Go back to the new product
![simple_arrow_right]()
PVP
€88.69
You save 20.68
Price including VAT:
€88.69
PVD
€75.36
PVP: Retail price.
Check conditions.
PVP: Sale price to distributors.
Check conditions.
2 yearswarranty
RENEWED
100%safe
Original product specifications
- Complete structure with front guides for 19" rack, adjustable in depth to adapt to any need.
- Door with security glass that gives it a more attractive design and key lock. 180 degree door opening.
- Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate.
- Drilling for up to two 12 cm fans in the top panel (fans not included).
- Holes in the back plate for fixing the cabinet to the wall.
Original product info
19" wall rack cabinet from the RackMatic SOHORack range. 12U wall cabinet and exterior size in mm of 600 (A) x 450 (F) x 639 (H). The interior racks are configurable in depth, although they are set by default. They are supplied installed at a distance of 375 mm between them.The distance from the front frame to the bottom of the cabinet (useful depth) could be up to 395 mm, advancing the front frame as much as possible.
specs
specs
- Complete structure with front guides for 19" rack, adjustable in depth to adapt to any need.
- Door with security glass that gives it a more attractive design and key lock. 180 degree door opening.
- Holes for the passage of cables, in the upper and lower panel. These holes for the passage of cables can be left open or closed with a metal plate.
- Drilling for up to two 12 cm fans in the top panel (fans not included).
- Holes in the back plate for fixing the cabinet to the wall.
- Cabinet depth 450 mm.
- Side panels with a removable system without screws, for convenient lateral access to the wiring and accessories housed. Optionally, a lock can be installed on the side panels to prevent unwanted access.
- They are delivered to the customer fully assembled and packed, ready to be installed. Manufactured in SPCC steel painted white (RAL 7035).
- They comply with the most demanding regulations and standards ANSI/EIARS-310-D, IEC297-2, DIN41491 (part 1, Part 7) and DIN41494.
- Gross Weight: 22.2 kg
- Product size (width x depth x height): 60.0 x 45.0 x 63.5 cm
- Number of packages: 1
- Packages size: 71.0 x 67.0 x 52.0 cm
- Master-pack: 1
Technical terms
- RACK 19
- Rack unit (U)
- test7
RACK 19
A rack is a metal support designed to house electronic, computer and communications equipment. The measures for the width are normalized to be compatible with most equipment manufacturers. They are also called racks, cabinets, cabinets or closets. Each column has holes at regular intervals called U rack units (Pictured: 4) grouped in threes. The height (Pictured:5) of the racks is standardized and external dimensions of 200 mm by 200 mm. Being normal that from 4U to 46/47U height width types (Pictured: 7). Standard 600 mm or 800 mm Types of background (Pictured: 6) The depth of the frame is not standardized, as this flexibility is granted (Pictured: 8) to the equipment. The most common are: - 450 mm - 600 mm - 800 mm - 900 mm - 1000 mm - 1200 mm Type 19-inch rack can find various types of 19-inch rack. Rack Mural (Pictured: 2): Used to accommodate electronic network. They are the smallest and are anchored to wall. Rack Pie (Pictured: 1): They are used primarily for servers, UPS and network electronics. Open Rack (Pictured: 3): Open Rack Racks are available only modelsstructure, eliminating doors and other accessories.
